Details
The Barrow TNYBT4-A02 is a barb fitting for soft tubing with a 1/2" (12.7 mm) inner diameter. Unlike most barbs it has a G1/4" female thread instead of a male one, so it screws onto a male thread such as a male to male adapter, an extender or a part with a male G1/4" outlet. It is machined from H59 brass and finished in shiny silver.
Properties
- Type
- Barb fitting, female thread
- Thread
- G1/4" female
- Tubing
- 1/2" ID soft tubing
- Size
- 18 mm collar, 14.5 mm barb, 20 mm long
- Material
- H59 brass, electroplated
- Color
- Silver
- Pieces in the pack
- 1

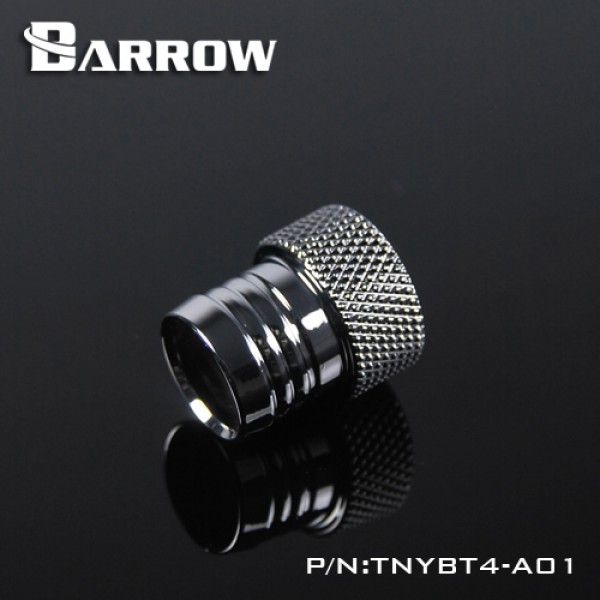

A barb that screws onto a male thread
The knurled collar holds a G1/4" female thread, and the ridged barb takes 1/2" ID soft tubing. Push the tube over the barb, then secure it with a hose clamp or a cable tie if you want extra hold; Barrow does not include a clamp.
Brass with a double-protected finish
Barrow uses H59 brass for the body and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.
Non-slip diamond knurling
The collar has a diamond knurl pattern. Barrow says it gives a sure grip when you screw the fitting on by hand.
Standard G1/4" thread
The thread is the standard G1/4" of PC water cooling, so it fits male threads on parts from other makers as well as Barrow's own.
Technical data
| Model | TNYBT4-A02 |
| Type | Barb with female thread |
| Thread | G1/4" female |
| Barb | For 1/2" ID soft tubing |
| Collar diameter | 18 mm |
| Collar height | 8 mm |
| Barb length | 12 mm |
| Barb outer diameter | 14.5 mm |
| Material | H59 brass |
| Color | Silver |
Notes
- Barrow makes this barb in black, white, shiny silver and gold. This listing is the shiny silver version.
- Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.
In the box
- 1x Barrow G1/4" Inner Thread to 1/2" ID Barb Adapter Fitting - Silver
