Barrow G1/4" Quick Disconnect Fitting Set - Black/Black (TZKMF-V2)

The Barrow TZKMF-V2 is a G1/4" quick disconnect set: one female half (TZKF-V2) and one male half (TZKM-V2) that snap together and come apart again by hand. Fit one half on each side of a part of your loop and you can take that part out without draining the whole system. Barrow makes it from brass and aluminum alloy; this set has a black body with a black ring.

Properties

Type

Quick disconnect set, female and male half

Threads

G1/4" female on each half

Release

Pull the sleeve on the female half

Size connected

27.6 mm across, 57.3 mm long

Material

Brass and aluminum alloy

Color

Black

Pieces in the pack

1 set (2 halves)

Take parts out without draining

A quick disconnect splits the loop at one point. Put one half on each side, for example between a radiator and the rest of the loop or in the line to a graphics card, and you can separate the two later to move, service or swap that part. Barrow calls it a quick sealing plug set, meaning each half closes when the two are pulled apart.

Push to connect, pull to release

Push the male half into the female half until it locks. To separate them, pull back the sleeve on the female half, which is marked PULL, and draw the male half out.

Standard G1/4" threads

Both halves end in a standard G1/4" female thread, so you can screw any G1/4" tube fitting into them, or a male to male adapter to mount a half straight onto a port. The fittings are not included.

Body and ring colors

Barrow makes the V2 set with a black or shiny silver body, and the ring on the female half in black, silver, blue, red or white. This listing is the black body with a black ring.

Technical data

Notes

• Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.

In the box

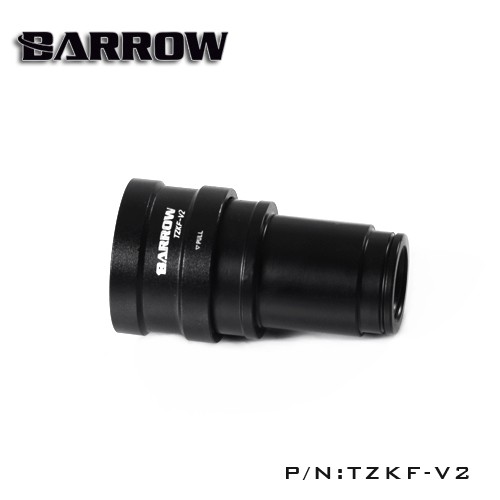

• 1x Barrow TZKF-V2 female quick disconnect half - Black

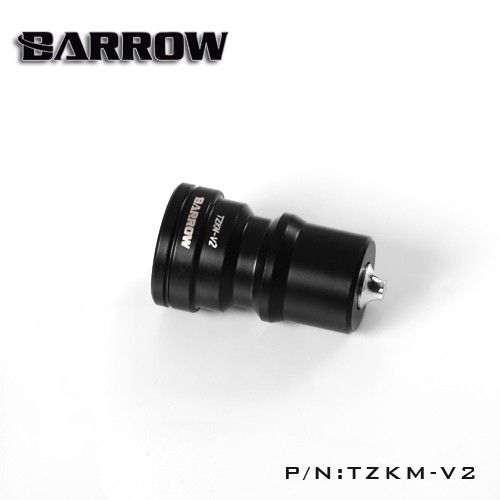

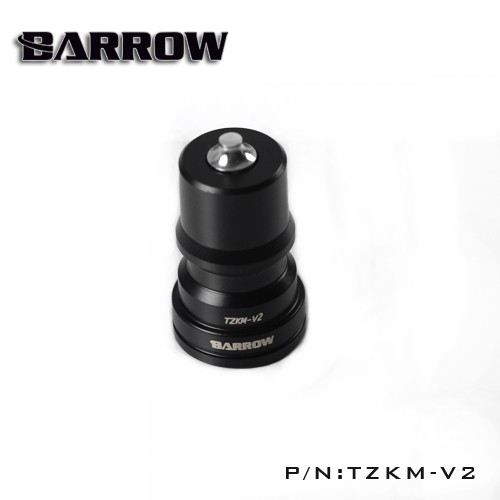

• 1x Barrow TZKM-V2 male quick disconnect half - Black
