Details

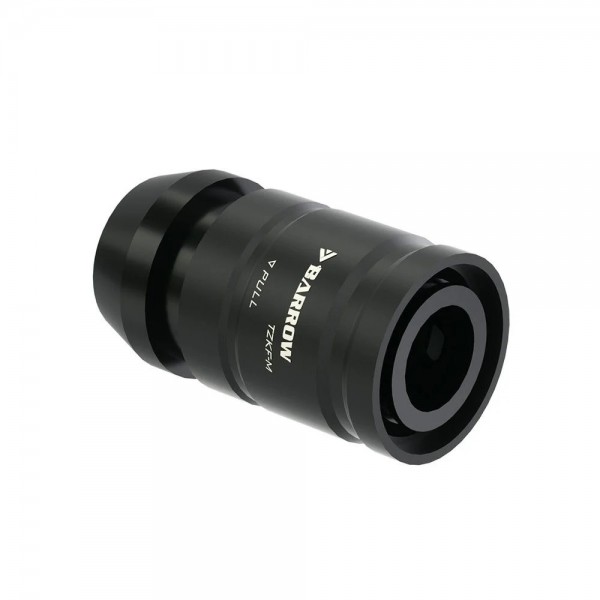

The Barrow TZKF-M is the female half of the Professional Edition G1/4" quick disconnect. It takes the male half TZKM-M, which is sold separately, and releases it when you pull back its sleeve. Fit the two on each side of a part of your loop and you can take that part out without draining the whole system. Finished in black.
Properties
- Type
- Quick disconnect, female half
- Thread
- G1/4" female
- Mates with
- Barrow TZKM-M male half
- Release
- Pull sleeve, marked PULL
- Material
- Brass and aluminum alloy
- Color
- Black
- Pieces in the pack
- 1
Take parts out without draining
A quick disconnect splits the loop at one point. Put one half on each side, for example between a radiator and the rest of the loop or in the line to a graphics card, and you can separate the two later to move, service or swap that part without draining the whole system.
Push to connect, pull to release
Push the male half into the female half until it locks. To separate them, pull back the sleeve on the female half, which is marked PULL, and draw the male half out.
Standard G1/4" threads
Each half ends in a standard G1/4" female thread, so you can screw any G1/4" tube fitting into it, or a male to male adapter to mount a half straight onto a port. The fittings are not included.
Professional Edition, made to match
The female half TZKF-M and the male half TZKM-M are made to work together; Barrow also sells the two as the set TZKMF-M. The body carries ribbed grip slots and the Barrow logo.
Low flow restriction
Barrow says it reworked the inside of the Professional Edition compared with its MINI quick disconnect, so the coolant meets much less resistance on its way through.
Brass and aluminum
Barrow builds the Professional Edition from brass and aluminum alloy. On the male half the plug that goes into the female half is bare brass.
Technical data
| Model | TZKF-M |
| Type | Quick disconnect, female half |
| Thread | G1/4" female |
| Mates with | TZKM-M |
| Pair connected | 20 mm across, 56.7 mm long |
| Release | Pull sleeve |
| Color | Black |
Notes
- This is one half only. You need the male half TZKM-M to make a working connection, or buy both as the set TZKMF-M.
- Barrow gives the size of the connected pair (20 mm across, 56.7 mm long).
- Barrow lists the Professional Edition with a black or a silver body. This listing is the black version.
- Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.
In the box
- 1x Barrow G1/4 Professional Edition Female Quick Disconnect Fitting - Black
