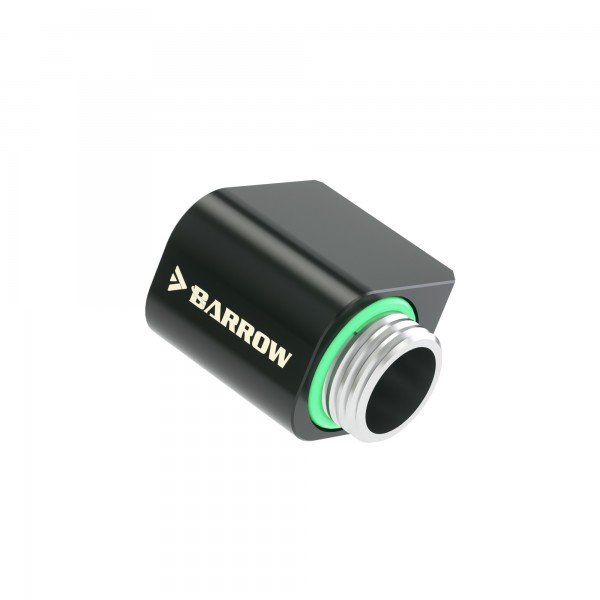

Barrow G1/4 Mini 90 Degree Rotary Adapter Fitting - Black (TWT90-M)

The Barrow TWT90-M is a mini 90° rotary adapter with a G1/4" male thread on the bottom and a G1/4" female port on the side. Its square body is only 21 mm wide and 21 mm tall, so it turns a connection through 90° in less room than a round elbow, and it turns through 360° on its port. It is made of brass and finished in black.

Properties

Type

Mini 90° adapter, male to female

Thread

G1/4" male to G1/4" female

Ports

2x G1/4"

Rotation

360°

Size

21 x 21 mm body, 5 mm male thread

Material

H59 brass, electroplated

Color

Black

Pieces in the pack

1

A compact 90° turn

Barrow makes this adapter for changing the connection direction and turning it through 360° in a water cooling loop. Screw the male end into any G1/4" port, turn the body so the side port faces your tube, and screw your tube fitting into the female port. The low, square body keeps the turn close to the port, which helps where space is tight.

Brass with a double-protected finish

Barrow uses H59 brass for the body and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.

Standard G1/4" connections

Both ports use the standard G1/4" thread of PC water cooling, so the adapter works with blocks, radiators, reservoirs and fittings from other makers as well as Barrow's own. The male end is sealed by an O-ring.

Technical data

Notes

• Barrow sells this adapter in black and shiny silver brass, and lists an Acetal (POM) version as well. This listing is the black version.
• Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.

In the box

• 1x Barrow G1/4 Mini 90 Degree Rotary Adapter Fitting - Black
