Details

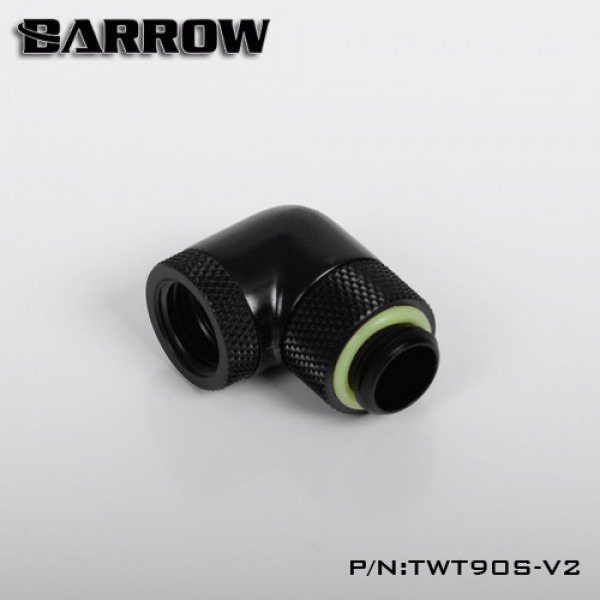

The Barrow TWT90S-V2 is a 90° dual rotary adapter fitting with a G1/4" male thread on one end and a G1/4" female thread on the other. Both ends turn through a full 360°, so the bend can point exactly where your tube needs to go and the fitting in the female end can still be turned afterwards. It is machined from H59 brass and finished in black.
Properties
- Type
- 90° dual rotary adapter, male to female
- Thread
- G1/4" male to G1/4" female
- Rotation
- 360° at both ends
- Material
- H59 brass, electroplated
- Color
- Black
- Pieces in the pack
- 1
Change direction anywhere in the loop
Barrow makes this adapter for changing the connection direction in a water cooling loop. Screw the male end into any G1/4" port, turn the elbow to the angle you want, and screw your tube fitting into the female end. Because both joints keep turning through 360°, you can set the final angle of the elbow and of the fitting after everything is threaded in.
Brass with a double-protected finish
Barrow uses H59 brass for the body and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.
Non-slip diamond knurling
Both rotating collars have a diamond knurl pattern. Barrow says it gives a sure grip when you screw the adapter in by hand.
Standard G1/4" connections
Both ends use the standard G1/4" thread of PC water cooling, so the adapter works with blocks, radiators, reservoirs and fittings from other makers as well as Barrow's own. The male end is sealed by an O-ring.
Technical data
| Model | TWT90S-V2 |
| Type | 90° dual rotary adapter, male to female |
| Threads | G1/4" male | G1/4" female |
| Possible rotation | 360° at each end |
| Length | 25.9 mm |
| Height without male thread | 27.9 mm |
| Collar diameter | 18 mm at both ends |
| Male thread length | 5 mm |
| Material | H59 brass |
| Color | Black |
Notes
- Barrow sells this adapter in black, white and shiny silver. This listing is the black version.
- For a single rotary joint, see the Barrow TWT90-V2.5.
- Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.
In the box
- 1x Barrow G1/4" 90 Degree Dual Rotary Adapter Fitting - Black
