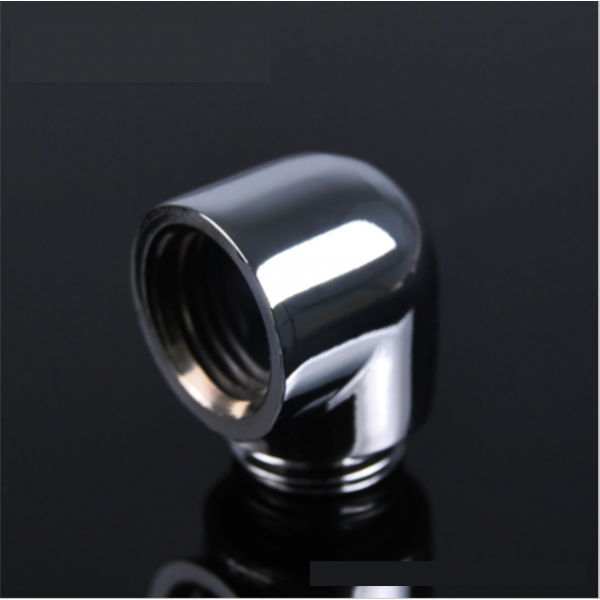

Barrow G1/4" 90 Degree Male to Female Angled Adapter Fitting - Silver (TDWT90-B01-Silver)

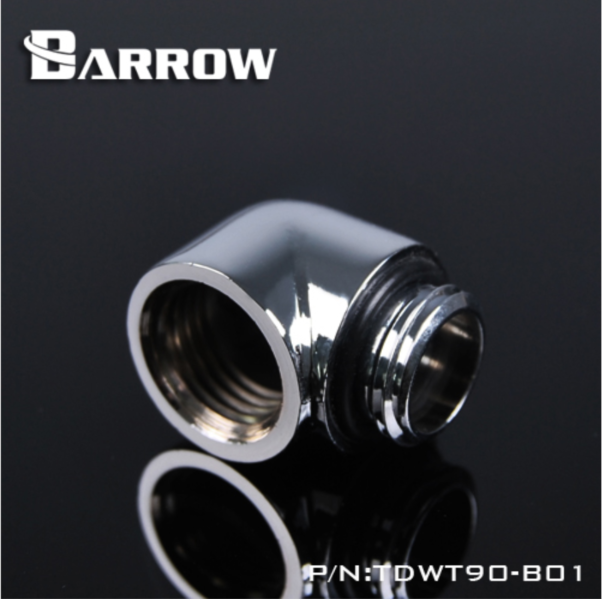

The Barrow TDWT90-B01 is a 90° adapter fitting with a G1/4" male thread on one end and a G1/4" female thread on the other. It turns a port by 90°, so your tube can run along a block, radiator or reservoir instead of straight out of it. It is machined from H59 brass and finished in shiny silver.

Properties

Type

90° adapter, male to female

Thread

G1/4" male to G1/4" female

Angle

90°

Material

H59 brass, electroplated

Color

Silver

Pieces in the pack

1

Change direction by 90°

Barrow makes this adapter for changing the connection direction when you connect water cooling hardware. Screw the male end into a G1/4" port, then screw your tube fitting into the female end. The tube leaves at a right angle, which saves space where a straight fitting would push the tube against a panel or another part.

Brass with a double-protected finish

Barrow machines the body from H59 brass and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.

Standard G1/4" connections

Both ends use the standard G1/4" thread of PC water cooling, so the adapter works with blocks, radiators, reservoirs and fittings from other makers as well as Barrow's own. The male end is sealed by an O-ring.

Technical data

Notes

• This adapter does not rotate; the angle is set by how far you screw it in. For a turning joint, Barrow makes rotary versions such as the TWT90-V2.5.
• Barrow sells this adapter in black, white, shiny silver and gold. This listing is the shiny silver version.
• Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.

In the box

• 1x Barrow G1/4" 90 Degree Male to Female Angled Adapter Fitting - Silver
