Details

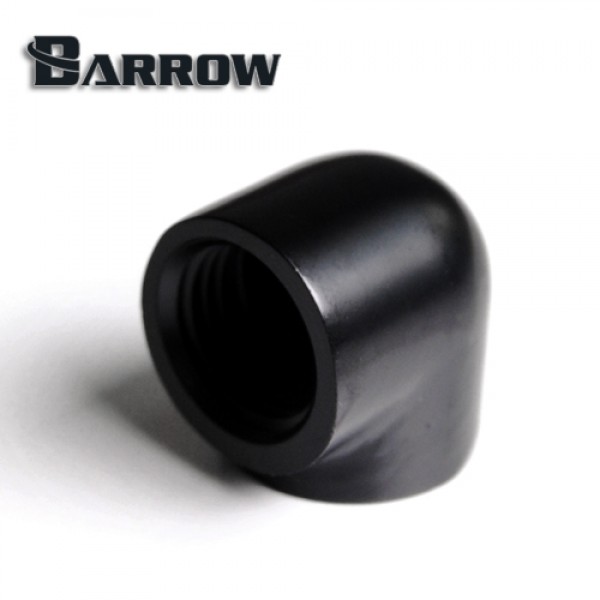

The Barrow TDWT90SN-V2 is a 90° adapter fitting with a G1/4" female thread on both ends. It joins two fittings at a right angle in a compact 19.8 mm body, for tight spaces and sharp changes of direction. It is machined from H59 brass and finished in black.
Properties
- Type
- 90° adapter, female to female
- Thread
- G1/4" female to G1/4" female
- Angle
- 90°
- Size
- 19.8 x 19.8 mm
- Material
- H59 brass, electroplated
- Color
- Black
- Pieces in the pack
- 1
Change direction by 90°
Barrow makes this adapter for changing the connection direction when you connect water cooling hardware. With a female thread on both ends it sits between two fittings, for example a male to male Connector on a block and a tube fitting, and turns the run by 90° in a very small space.
Brass with a double-protected finish
Barrow machines the body from H59 brass and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.
Standard G1/4" connections
Both ends are G1/4" female ports, the standard thread of PC water cooling. Screw a tube fitting, plug or extension into each end; to mount the adapter on a block or radiator port, put a male to male Connector between them. It works with parts from other makers as well as Barrow's own.
Technical data
| Model | TDWT90SN-V2 |
| Type | 90° adapter, female to female |
| Threads | G1/4" female | G1/4" female |
| Angle | 90° |
| Size | 19.8 x 19.8 mm |
| Body diameter | 18 mm |
| Material | H59 brass |
| Color | Black |
Notes
- This adapter does not rotate. For a turning joint, Barrow makes rotary versions.
- Barrow sells this adapter in black, white, shiny silver and gold. This listing is the black version.
- Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.
In the box
- 1x Barrow G1/4" 90 Degree Female to Female Angled Adapter Fitting - Black
