Details

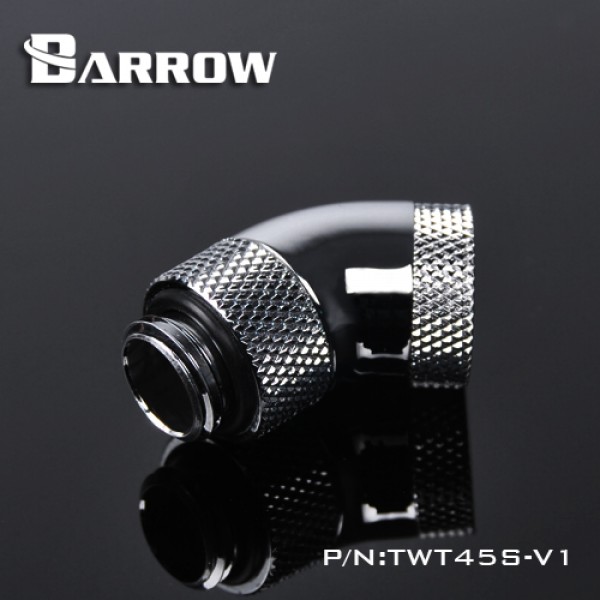

The Barrow TWT45S-V1 is a 45° dual rotary adapter fitting with a G1/4" male thread on one end and a G1/4" female thread on the other. It turns at two points, so the angled outlet can point exactly where your tube needs to go. It is made of H59 brass and finished in shiny silver.
Properties
- Type
- 45° adapter, male to female
- Thread
- G1/4" male to G1/4" female
- Ports
- 2x G1/4"
- Rotation
- 360°, at two points
- Material
- H59 brass, electroplated
- Color
- Silver
- Pieces in the pack
- 1
A gentler change of direction
Barrow makes this adapter for changing the connection direction in a water cooling loop. A 45° turn is gentler than a 90° elbow. Screw the male end into any G1/4" port, turn the adapter to the angle you want, and screw your tube fitting into the female end. Angling the outlet away from the port can also make room for a larger fitting next to a neighboring one.
Where it turns
The adapter turns at two points: the knurled collar at the male end and the knurled collar at the female end, each through 360°. With both turning, you can line up the tube fitting in the female end without unscrewing the adapter from its port.
Brass with a double-protected finish
Barrow uses H59 brass for the body and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.
Non-slip diamond knurling
The rotating collars have a diamond knurl pattern. Barrow says it gives a sure grip when you screw the adapter in by hand.
Standard G1/4" connections
Both ends use the standard G1/4" thread of PC water cooling, so the adapter works with blocks, radiators, reservoirs and fittings from other makers as well as Barrow's own. The male end is sealed by an O-ring.
Technical data
| Model | TWT45S-V1 |
| Type | 45° dual rotary adapter, male to female |
| Threads | G1/4" male | G1/4" female |
| Possible rotation | 360° |
| Height without male thread | 32.4 mm |
| Male-end collar height | 9 mm |
| Collar diameter | 18 mm, both ends |
| Male thread length | 5 mm |
| Material | H59 brass |
| Color | Silver |
Notes
- Barrow sells this adapter in black, white, shiny silver and gold. This listing is the shiny silver version.
- Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.
In the box
- 1x Barrow G1/4" 45 Degree Dual Rotary Adapter Fitting - Silver
