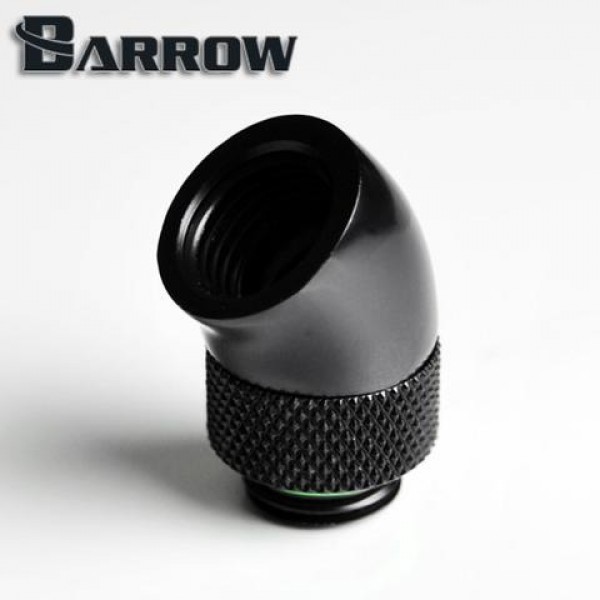

Barrow G1/4" 45 Degree Rotary Adapter Fitting - Black (TWT45-B01)

The Barrow TWT45-B01 is a 45° rotary adapter fitting with a G1/4" male thread on one end and a G1/4" female thread on the other. It turns at one point, so the angled outlet can point exactly where your tube needs to go. It is made of H59 brass and finished in black.

Properties

Type

45° adapter, male to female

Thread

G1/4" male to G1/4" female

Ports

2x G1/4"

Rotation

360°, at one point

Material

H59 brass, electroplated

Color

Black

Pieces in the pack

1

A gentler change of direction

Barrow makes this adapter for changing the connection direction in a water cooling loop. A 45° turn is gentler than a 90° elbow. Screw the male end into any G1/4" port, turn the adapter to the angle you want, and screw your tube fitting into the female end. Angling the outlet away from the port can also make room for a larger fitting next to a neighboring one.

Where it turns

The knurled collar at the male end turns through a full 360°, so the 45° outlet can point in any direction around the port.

Brass with a double-protected finish

Barrow uses H59 brass for the body and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.

Non-slip diamond knurling

The rotating collar has a diamond knurl pattern. Barrow says it gives a sure grip when you screw the adapter in by hand.

Standard G1/4" connections

Both ends use the standard G1/4" thread of PC water cooling, so the adapter works with blocks, radiators, reservoirs and fittings from other makers as well as Barrow's own. The male end is sealed by an O-ring.

Technical data

Notes

• Barrow sells this adapter in black, white, shiny silver and gold. This listing is the black version.
• Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.

In the box

• 1x Barrow G1/4" 45 Degree Rotary Adapter Fitting - Black
