Details

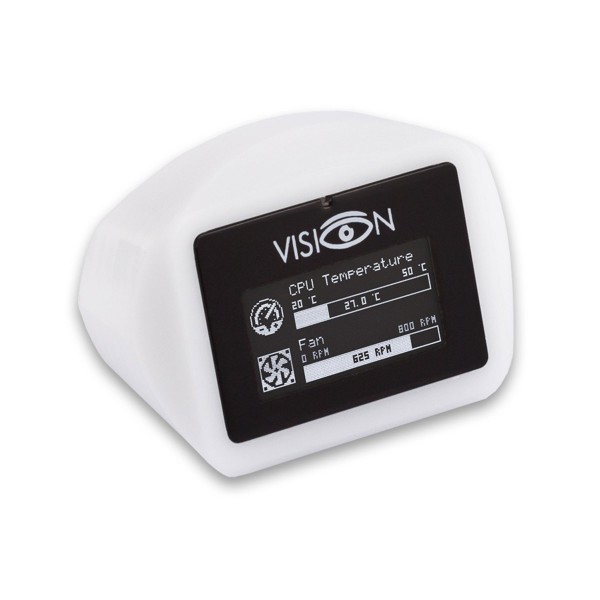

The Aquacomputer VISION Glow Table Top Unit with IR Receiver and Ambient Temperature Sensor is a desk display for PC hardware data: a high-resolution 128x64 pixel OLED graphic display with a USB interface. It adds a learnable IR receiver, an integrated ambient temperature sensor and RGB lighting, and as a table top version it takes no further cables (aquabus, flow sensor).
Properties
- Display
- OLED, 128x64 pixels, up to twelve display pages
- Connection
- USB cable with type A plug
- Sensor
- integrated ambient temperature sensor
- Extras
- learnable IR receiver, RGB LED
- Supply
- 5 V DC ±5 %, approx. 50 mA
- Dimensions
- about 48 x 33 x 24 mm without connection cable
OLED graphic display
The unit is equipped with a 128x64 pixel graphics display for the visualization of various data. Aquacomputer says its OLED technology guarantees excellent, exceptional contrast and a wide viewing angle, with minimal viewing angle dependence.
Individually configurable display contents
Up to twelve display pages can show a large number of PC hardware data, and the content can be combined freely. Values can be displayed individually as a single value screen, or in lists, as bar graphs or in diagrams and charts. All texts and graphical logos can be customized according to your wishes, and a notepad function allows short text notes.
Learnable IR receiver
The infrared receiver works with the aquaremote (not included) as well as with many other infrared remote controls. In conjunction with the aquaremote, keyboard and mouse inputs can also be made via the remote, so it can substitute for the PC's keyboard and mouse. When using other remote controls, up to ten infrared commands can be learned, each linked with individual functions.
Integrated temperature sensor and RGB lighting
Ambient temperature is determined continuously and can be used on the display pages. An alarm function can trigger a configurable action if an adjustable temperature threshold is exceeded. The integrated lighting comes from one RGB LED that is adjustable in color and brightness. Color changes or a temperature-dependent color can be configured as well.
What you need to connect it
The cable ends in a type A plug for a USB port of the PC, and the unit sits on a flat surface. Due to mechanical limitations, the table top versions take no further cables.
aquasuite software
Configuration runs in the aquasuite software. Activation includes an upgrade service for at least six (6) months; after it, the latest version from that period stays usable without a time limit. The service can be extended or renewed for a fee, and installation and activation need an internet connection.
Notes
- Ambient temperature range: 10 to 40 °C (noncondensing).
- Clean with a dry and soft cloth.
In the box
- 1x VISION Glow table top unit with USB cable (type A plug)
Aquacomputer's manual covers the whole VISION series in English, with the display, infrared and RGB settings.
