Details

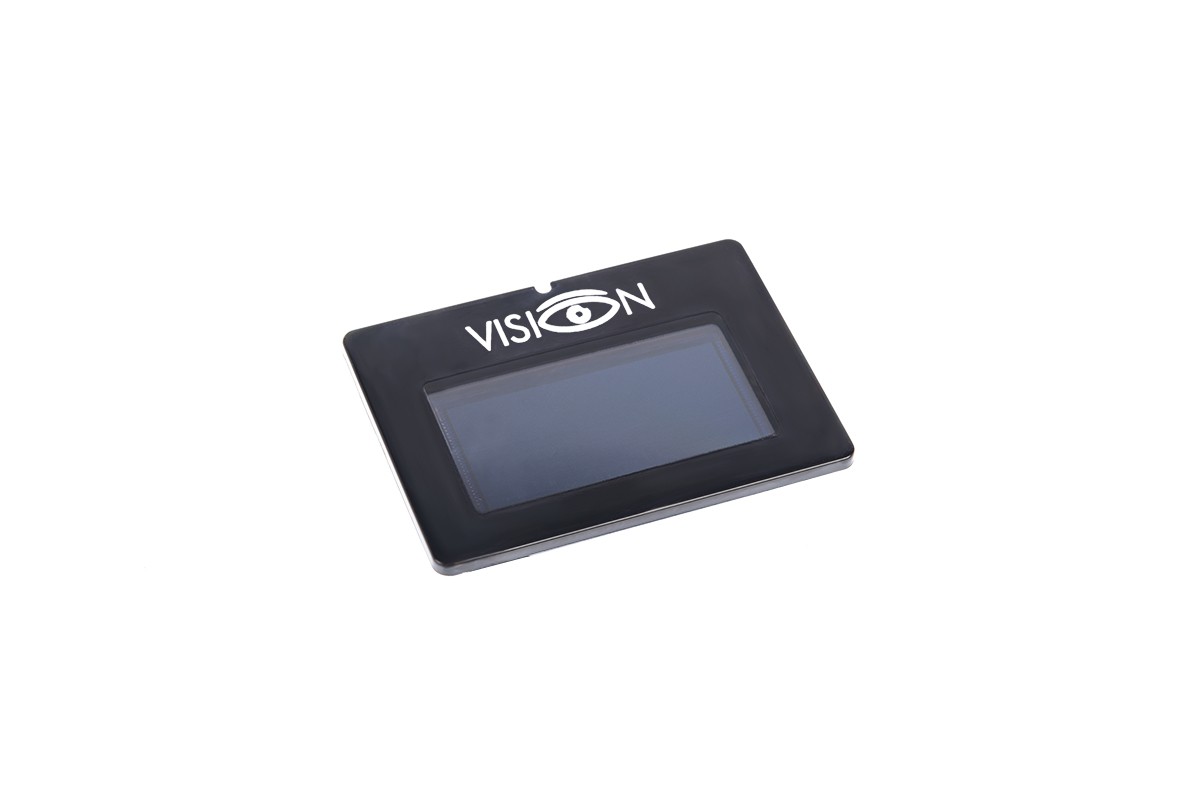

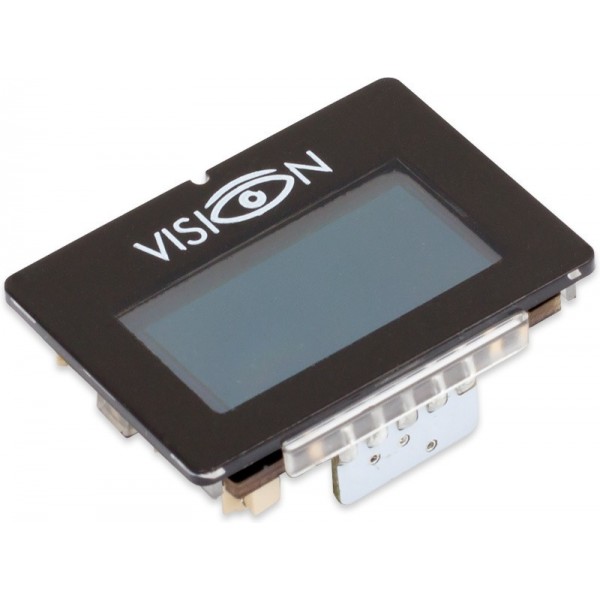

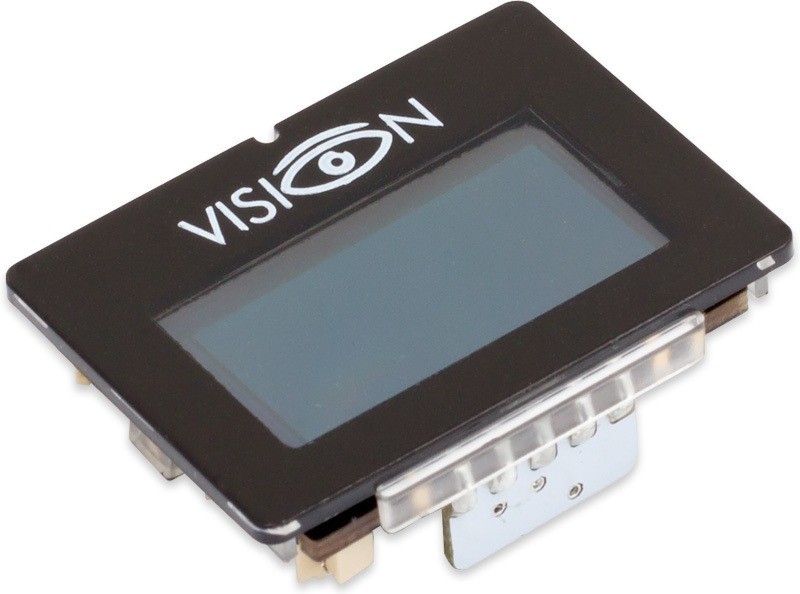

The Aquacomputer VISION Glow Replacement Module For Table Top Unit (53243) is a VISION module assembly for the VISION Glow table top unit (53236). You receive the module alone, to be used as a replacement part in that unit.
Properties
- For
- VISION Glow table top unit (53236)
- Interface
- USB, aquabus
- Supply
- 5 VDC ±5 %, approx. 50 mA
- Ambient temperature
- 10 to 40 °C (noncondensing)
What the module is
Aquacomputer describes the VISION module as a multi-purpose display and monitoring controller with an integrated OLED display. It talks to the PC over USB, where the aquasuite software handles configuration, visualization and logging. Through aquabus it can also work with an aquaero 5 or 6, such as the aquaero 6 LT; USB and aquabus can be used at the same time. Once fully configured and connected to an aquaero, the module needs no USB connection for operation.
What the unit needs
The module goes into an existing VISION Glow table top unit, which is not part of this delivery. A table top unit is simply placed on a flat surface. The 4-pin aquabus cable for VISION (53214) makes the aquaero link.
aquasuite software
The aquasuite license that comes with this product is an upgrade service: activation gives you the current version, and updates are included for at least the next six (6) months. After that period ends, you may keep using and reinstalling the latest version available during it without a time limit. The update service can be extended or renewed at any time for a fee. Please note that an internet connection is required for installation and activation of the software. Further information about licensing, the update service and activation can be found on Aquacomputer's licensing pages.
Notes
- Turn off the power supply completely, or unplug the mains cord, before connecting or disconnecting any cable.
- Clean with a dry and soft cloth; electronic components and headers must not get in contact with coolant or water.
Aquacomputer's manual for the VISION series covers the connectors, pin assignments and every aquasuite setting.
