Details

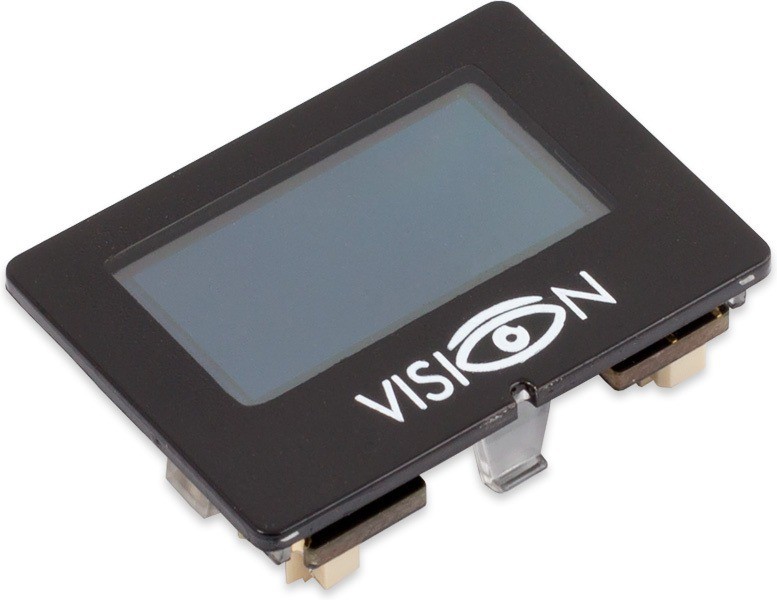

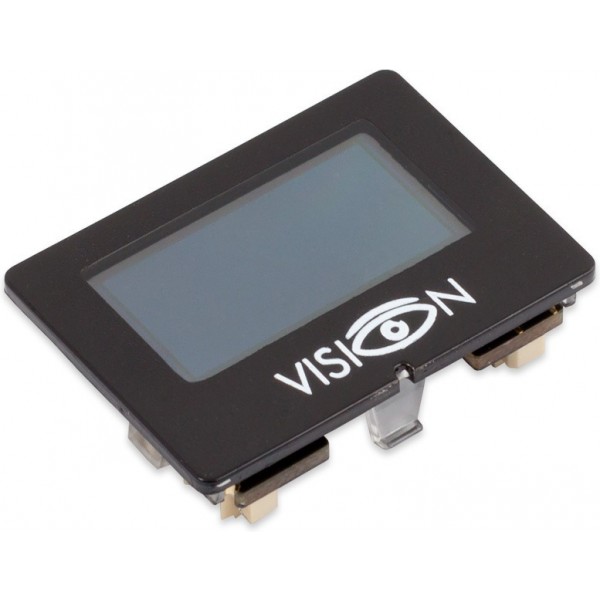

The Aquacomputer VISION Glow Replacement Module For Connection Terminal For Kryographics (53242) is a VISION module assembly for the VISION Glow connection terminal for kryographics (23665, 23667). You receive the module alone, to be used as a replacement part in that terminal.
Properties
- For
- VISION Glow connection terminal for kryographics (23665, 23667)
- Interface
- USB, aquabus
- Supply
- 5 VDC ±5 %, approx. 50 mA
- Ambient temperature
- 10 to 40 °C (noncondensing)
What the module is
Aquacomputer describes the VISION module as a multi-purpose display and monitoring controller with an integrated OLED display. Over USB it connects to the PC, and the aquasuite software takes care of configuration, visualization and logging. Through aquabus the module can also work with an aquaero 5 or 6, such as the aquaero 6 PRO, with USB and aquabus in use at the same time. When it is fully configured and connected to an aquaero, USB is not needed for operation.
What the terminal needs
The module fits into an existing VISION Glow connection terminal on a kryographics graphics card block, and neither terminal nor water block is part of this delivery. The terminal comes with its own installation manual. Its USB connector goes to an internal USB header; a spare internal USB connection cable for VISION (53215) is sold separately.
aquasuite software
The aquasuite license with this product works as an upgrade service: activating it gives you the current version, and updates are included for at least the next six (6) months. After that, the latest version available during the period may be used and reinstalled without a time limit. For a fee, the update service can be extended or renewed at any time. Please note that an internet connection is required for installation and activation of the software. Further information about licensing and activation can be found on Aquacomputer's licensing pages.
Notes
- Turn off the power supply completely, or unplug the mains cord, before connecting or disconnecting any cable.
- Clean with a dry and soft cloth; electronic components and headers must not get in contact with coolant or water.
Aquacomputer's manual for the VISION series covers the connectors, pin assignments and every aquasuite setting.
