Details

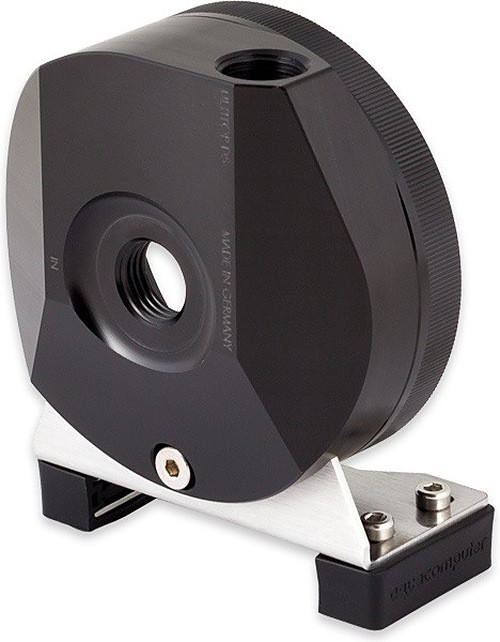

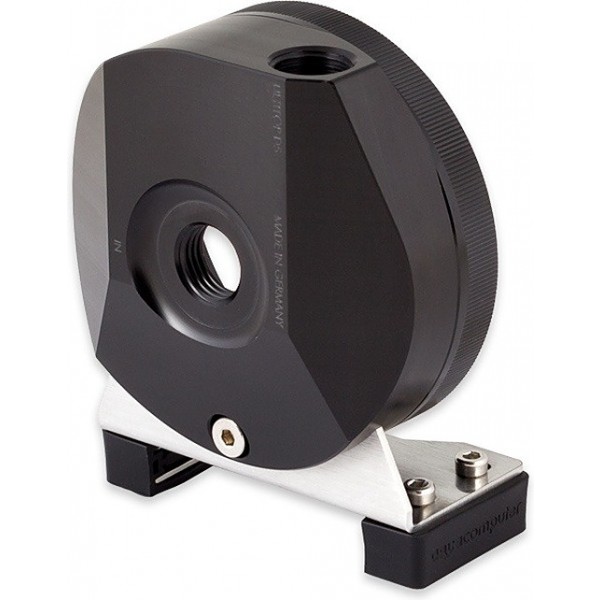

The Aquacomputer ULTITOP Pump Top For D5 Pumps (41123) is an extremely compact D5 pump top made of very resistant acetal, with two G1/4 ports. The pump is not included: an anodized aluminum mounting ring and gasket in the box hold the D5 motor.
Properties
- Pump
- D5 pump motors (not included)
- Material
- Acetal
- Ports
- 2x G1/4, central inlet engraved "IN", lateral outlet
- Size
- 72 x 72 x 34 mm without bracket/decouplers, 72 x 86 x 44 mm with them (without pump)
Flow and decoupling
Aquacomputer says that during development of this top, which was specifically made for D5 pumps, optimal flow and quiet operation were the primary focus. Its stainless steel bracket rests on silicone decouplers specially developed for it, a mount that effectively prevents the transmission of vibrations to the computer case. For assembly, stainless steel sheets with M3 threads are inserted in the decouplers. The bracket can be detached by loosening a single screw, for easy access to the pump.
What the loop needs
Of a complete D5 pump only the housing with the electronics and the impeller are used. A D5 NEXT has its controller unit off while the ring is screwed on. The return line goes to the central connector marked "IN" and the other line to the lateral one, so the top takes two G1/4 fittings from our fittings section. Screw them in gently: the threads are in the plastic base. The central thread sits in a recess 22 mm wide and 3 mm deep: a wider fitting needs an extension (not included), such as the male to female extension fittings. In polished brass with dark nickel plating, the same top is the ULTITOP Mirror Black (41133).
Compatibility
Aquacomputer lists these pumps as compatible:
- Aqua Computer D5 pump motor with speed signal (art. no. 41091)
- Aqua Computer D5 pump motor with PWM input and speed signal (art. no. 41105)
- Aqua Computer D5 pump motor with USB and aquabus interface (art. no. 41093)
- Aqua Computer D5 NEXT (art. no. 41118)
- Laing D5 series pumps and OEM versions identical in construction
In the box
- 1x ULTITOP D5 pump top, which includes:
- Pump adapter (top)
- Pump fastening ring
- O-ring gasket (replacement part 94767)
- Stainless steel bracket with silicone decouplers
- Stainless steel plates with M3 threads, inserted into the decouplers
- Mounting material
The manual covers installing the pump motor and the loop connections.
