Details

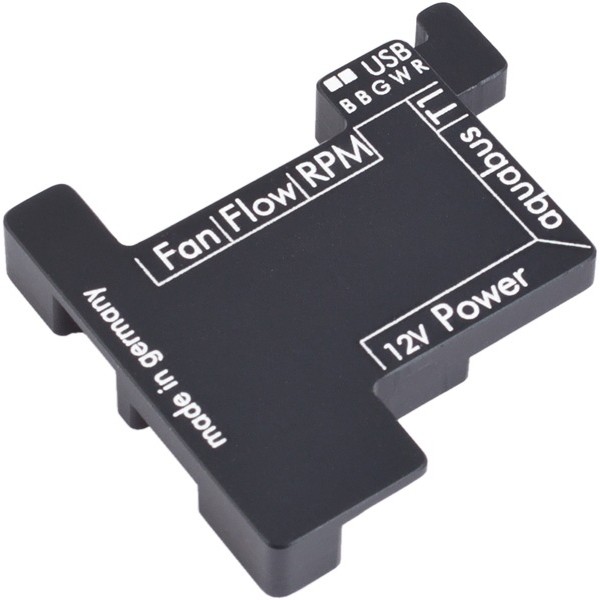

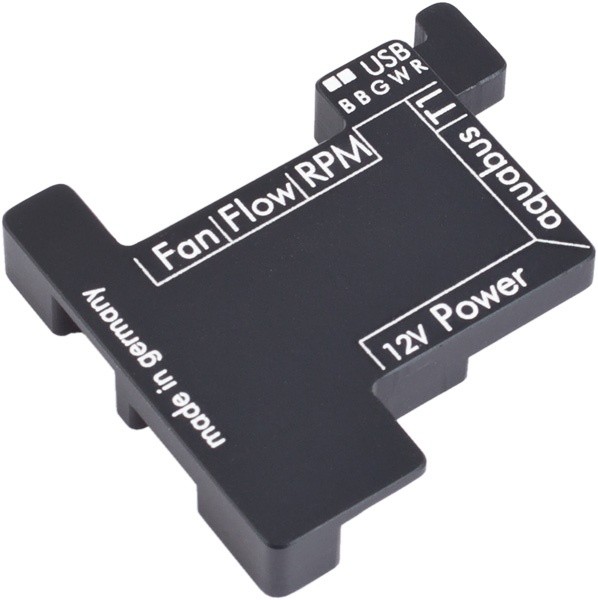

The Aquacomputer Poweradjust 3 Passive Heatsink | Black (53181) is a passive aluminum heat sink that is mounted directly on top of a poweradjust 3 USB controller. It improves heat dissipation and thereby increases the maximum power output of the controller's fan channel. The poweradjust 3 itself is not included in delivery.
Properties
- For
- poweradjust 3 USB controller
- Material
- Aluminum
- Color
- Black
- Thermal contact
- Thermally conductive pad, cut to fit
Installation
Disconnect the poweradjust 3 from the PSU first, then unplug every cable from it. Take out the three screws marked green in the manual's figure. From the supplied thermally conductive pad, cut pieces that fit the components marked by red rectangles, and lay them on those parts.
Set the heat sink onto the poweradjust PCB and fasten heat sink and PCB together with three of the M3 x 10 mm bolts that come with it. The remaining original screw is swapped for another M3 x 10 mm bolt and an M3 nut, both supplied. Plug all previously removed cables back in, and the controller is ready again.
Compatibility
The heat sink is listed as compatible with this controller:
- poweradjust 3 (52247/52246)
Please note: it is also compatible with bezel sets 52179/52183. The heat sink needs a controller to sit on, such as the poweradjust 3 USB Ultra version (53167).
In the box
- Aluminum heat sink for poweradjust 3
- Thermally conductive pad
- Mounting material
The manual for the passive heat sink is a one-page English PDF with the installation steps and the figure showing which screws and components are meant.
