Details

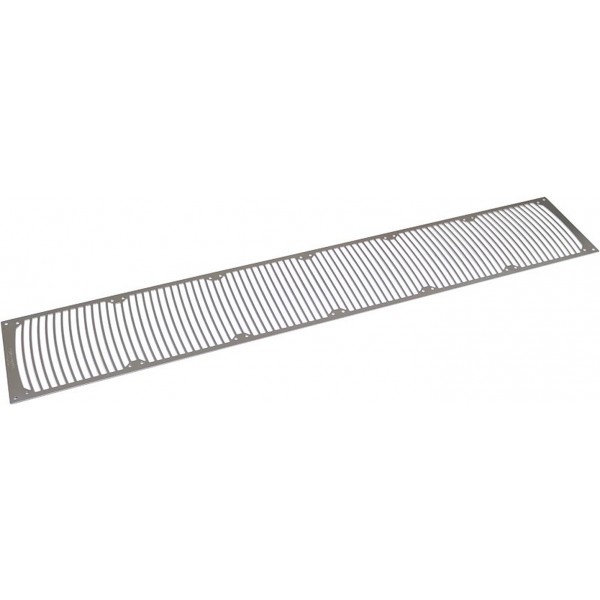

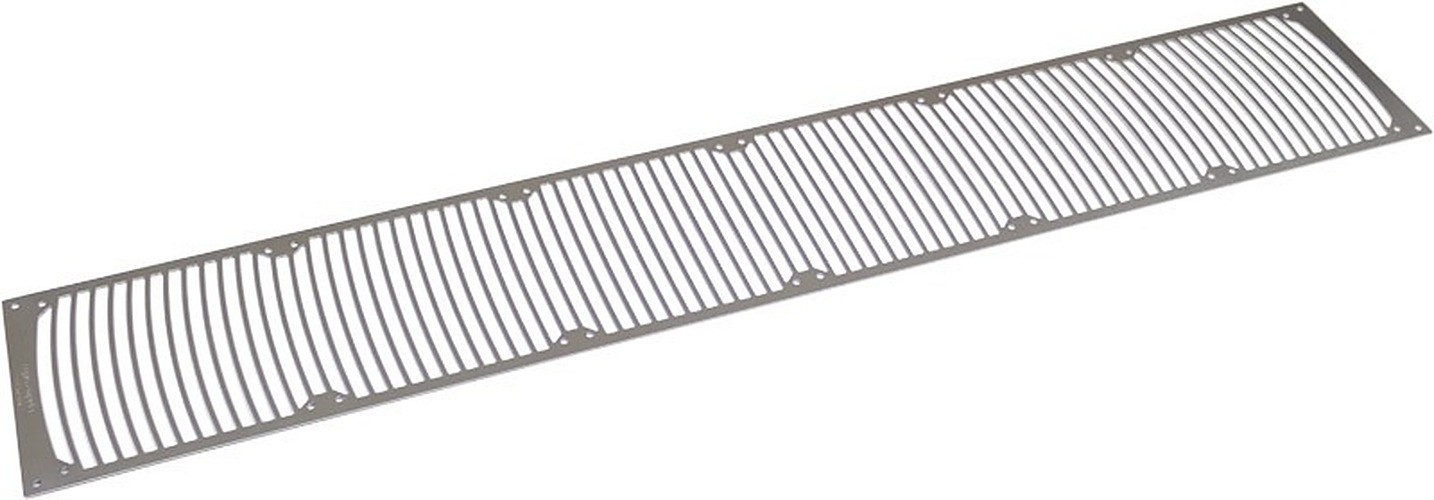

The Aquacomputer Mounting Bracket for Airplex Modularity System 840, Brushed Stainless Steel is an 840 mm radiator grill for a PC case, made from 1.5mm thick brushed stainless steel. It makes mounting the radiators of the airplex modularity system, as well as those of the airplex XT and PRO series, possible under a cut-out in the system enclosure.
Properties
- For
- airplex modularity system 840 mm
- Fans
- 140mm fans
- Material
- Brushed stainless steel, 1.5mm thick
- Pieces
- Mounting plate, 4 screws with nuts, 24 screws
How it is installed
For installation, a suitable hole must be machined into the enclosure, preferably into the top cover. When installed, the grill covers the edge of the hole, hence making small imperfections of the cut disappear. Four stainless steel screws with nuts affix it to the case.
On the installed grill, the radiator can then be mounted underneath in combination with 140mm fans; 24 stainless steel screws are included for fan and radiator mounting. Aquacomputer adds that the plate can also be used as an exclusive fan grille, without any radiator.
What the build needs
Radiator and fans are not included. Fans of that size are in our 140mm fans section, and other covers are under radiator grills.
Compatibility
Aquacomputer lists this radiator for the mounting plate:
- airplex modularity system 840 mm
In the box
- Brushed stainless steel radiator grill (mounting plate)
- 4 stainless steel screws with nuts for mounting of the grill to the case
- 24 stainless steel screws for fan and radiator mounting
