Details

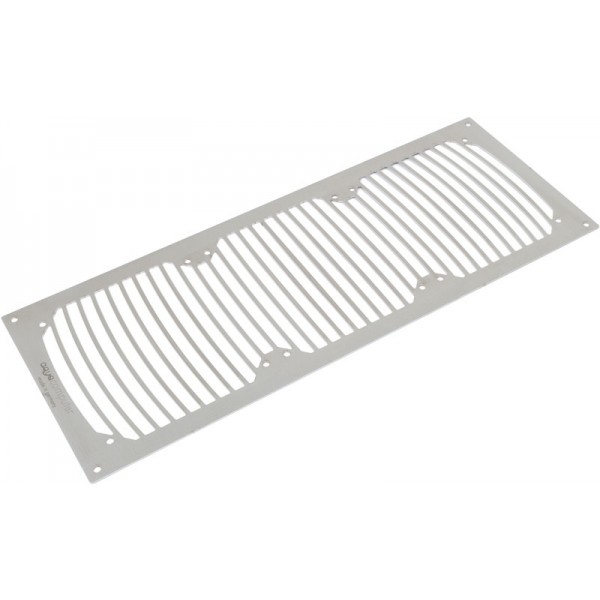

The Aquacomputer Mounting Bracket for Airplex Modularity System 360, Brushed Stainless Steel is a 360 mm radiator mount for a PC case, made from 1.5mm thick brushed stainless steel. With this mount, a radiator of the airplex modularity system, as well as one of the airplex XT and airplex PRO series, sits under a cut-out in the enclosure.
Properties
- For
- airplex modularity system 360 mm, airplex PRO 360, airplex XT 360
- Fans
- 120mm fans
- Material
- Brushed stainless steel, 1.5mm thick
- Pieces
- Mounting plate, 4 screws with nuts, 12 screws
How it is installed
Installation starts with the case itself. A suitable hole must be machined into the enclosure, preferably into the top cover. When the plate is installed, it covers the edges of the cut-out, making any impressions the machining left invisible and creating a clean, good-looking finish. Four stainless steel screws with nuts make it possible to affix the cover to the case.
On the installed grill, the radiator can then hang underneath, using any 120mm fans to hold it: the twelve stainless steel screws in the box are for fan and radiator mounting. Of course the plate can also be used as an exclusive fan grill, without a radiator.
What the build needs
The radiator and fans are not part of the mount. A matching radiator is the airplex modularity 360 mm radiator (33036), and three fans of that size are in our 120mm fans section. Other grills are under radiator grills.
Compatibility
Aquacomputer lists these radiators for the mounting plate:
- airplex modularity system 360 mm
- airplex PRO 360
- airplex XT 360
In the box
- 1x Radiator Grill
- 4 stainless steel screws with nuts for affixing the cover to the case
- 12 stainless steel screws for fan and radiator mounting
