Details

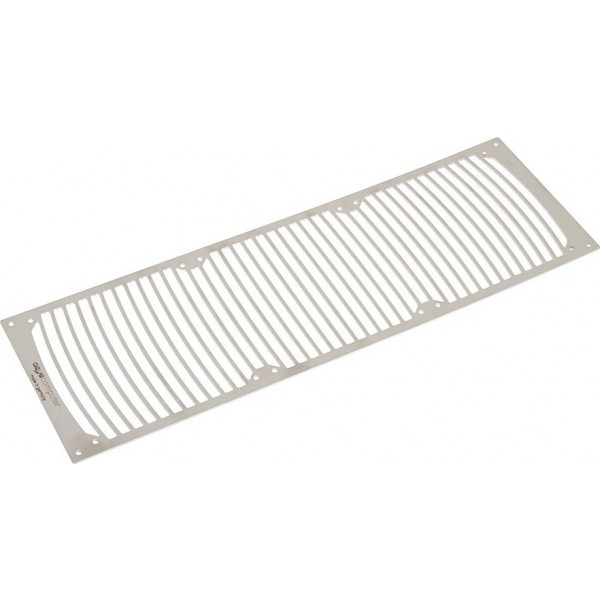

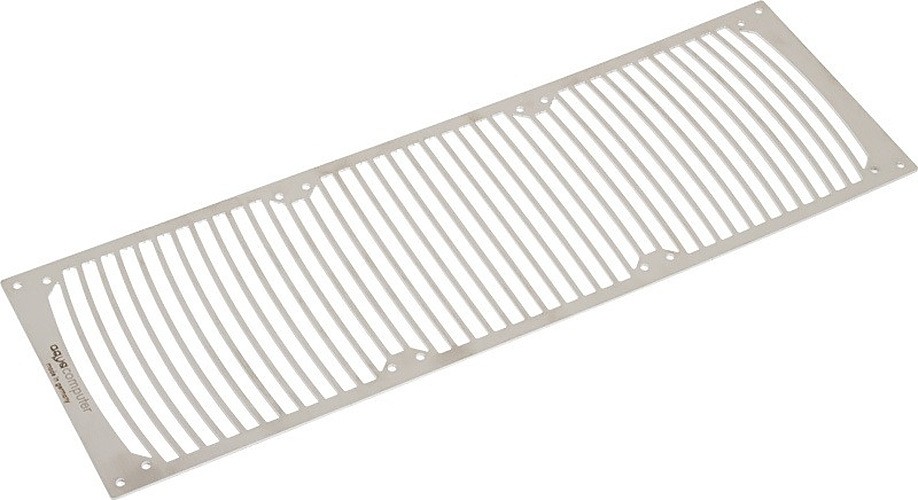

The Aquacomputer Mounting Bracket for Airplex Modularity System 420, Brushed Stainless Steel is a 420 mm radiator mount for a PC case, made from 1.5mm thick brushed stainless steel. With it, a 420 radiator of the airplex modularity system or the airplex revolution series can be fitted under a cut-out in the enclosure.
Properties
- For
- airplex modularity system 420 mm, airplex revolution 420
- Fans
- 140mm fans
- Material
- Brushed stainless steel, 1.5mm thick
- Pieces
- Mounting plate, 4 screws with nuts, 12 screws
How it is installed
Installation starts with the case. A suitable hole must be machined into the enclosure, preferably into the top cover. When installed, this plate covers the edges of the cut-out, making possible impressions of the machining invisible as well as creating a clean and good-looking finish. Four stainless steel screws with nuts affix the cover to the case.
On the installed grill, the radiator can then be fitted underneath using any 140mm fans: the twelve stainless steel screws in the box are for fan and radiator mounting. Of course the plate can also be used as an exclusive fan grill, without a radiator.
What the build needs
Radiator and fans are not part of the mount. Three fans of that size are in our 140mm fans section, and other covers are under radiator grills.
Compatibility
Aquacomputer lists these radiators for the mounting plate:
- airplex modularity system 420 mm
- airplex revolution 420
In the box
- 1x Radiator Grill
- 4 stainless steel screws with nuts for affixing the cover to the case
- 12 stainless steel screws for fan and radiator mounting
