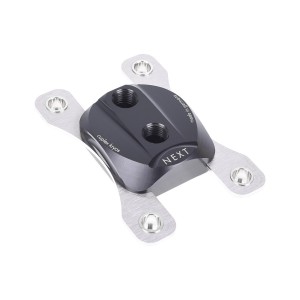

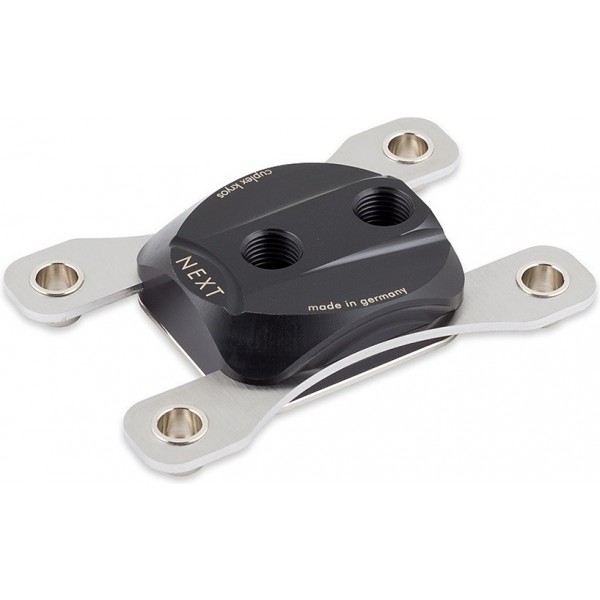

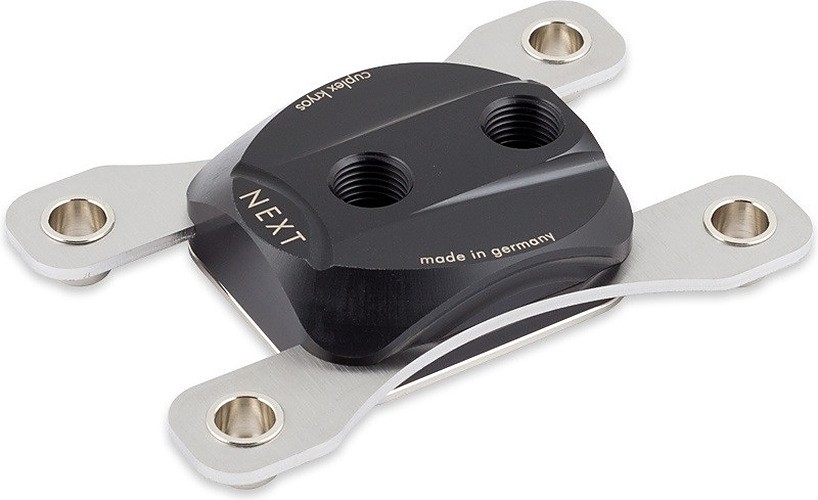

Aquacomputer Cuplex Kryos NEXT AM4, Acetal/.925 Silver (21708)

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Aquacomputer Cuplex Kryos NEXT AM4, Acetal/.925 Silver (21708)

Availability: In stock - Ships in 3-5 Business Days

Sku: 1014533

Regular Price: $192.99

Special Price $173.69

Quick Overview

The cuplex kryos NEXT marks a new milestone in CPU water block development. Every detail has been analyzed, optimized and tested to achieve perfection in cooling performance.
OR

Details

Product Information

The Cuplex Kryos NEXT marks a new milestone in CPU water block development. Every detail has been analyzed, optimized and tested to achieve perfection in cooling performance, installation procedure and product features. The result is not just a CPU water block with outstanding performance - it is a product series with various models differing in color and functionality. The VARIO models are the first CPU water blocks globally to incorporate a real-time adjustable base - never before has it been possible to adjust the geometry of a CPU block to perfectly fit the CPU while the PC is in operation. Models with VISION module are equipped with modern electronics: High resolution OLED display, integrated water temperature sensor and USB interface are just three of the features.

Base part with micro structure
The base part of the cuplex kryos NEXT is equipped with an extremely fine micro structure, the structural width is lower than 200 µm. The coolant is injected centrally through a slot-shaped nozzle and then runs to both sides of the structure. The base itself is manufactured from copper, nickel plated copper or .925 sterling silver depending on model.

Retention system
The cuplex kryos NEXT retention system consists of 2.5 mm thick stainless steel plates equipped with nickel plated spring cups. Springs and knurled screws secure the water block on the motherboard, the retention system has a very clean look when installed. All retention system versions feature a mechanical stop for optimum clamping force and even force distribution. The knurled screws can be installed by hand, additionally a hexagon socket wrench can be used for easy installation.
Water blocks for socket 115x or AM3 include a steel back plate with silicone insulation to stabilize the CPU region of the motherboard. Socket 2011, AM4 and TR4 motherboards already include a back plate as part of the CPU socket, therefore no additional back plate is required.
For optimum performance, every cuplex kryos NEXT ships with outstanding thermal compound. A syringe with 0.5 grams of Thermal Grizzly Kryonaut is included, complete with plastic spatula. This compound has a high thermal conductivity and spreads out thin and evenly between CPU and water block due to its low viscosity. The amount is sufficient for approximately five applications.

Material combination

Acetal/.925 Silver: Top Part: Black Acetal, Base: .925 Sterling Silver

Technical details

  • Dimensions: 111 x 75 x 22 mm (not including screws)
  • Socket AM4
  • Connection threads: G1/4
  • Distance between threads: 28 mm

Additional Information

NE CA Item # No
Amazon ASIN No
NE US Item # No
Date added No
Manufacturer Aquacomputer
Overall Dimensions 111 x 75 x 22 mm (not including screws and back plate)
Cooling Plate Material .925 Silver
Top Cover Material Acetal
Socket Type AMD AM4
Number of Ports 2x G1/4
Color Smoked Black
Included 1x Water block
1x Mounting material (screws, springs, etc.)
1x Thermal compound Thermal Grizzly Kryonaut, approx. 0.5 grams in syringe
1x Plastic spatula
1x Instruction manual
Material .925 Sterling Silver
