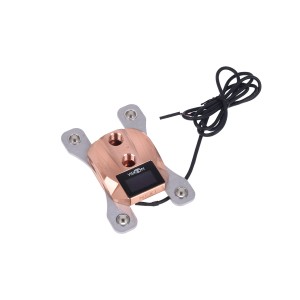

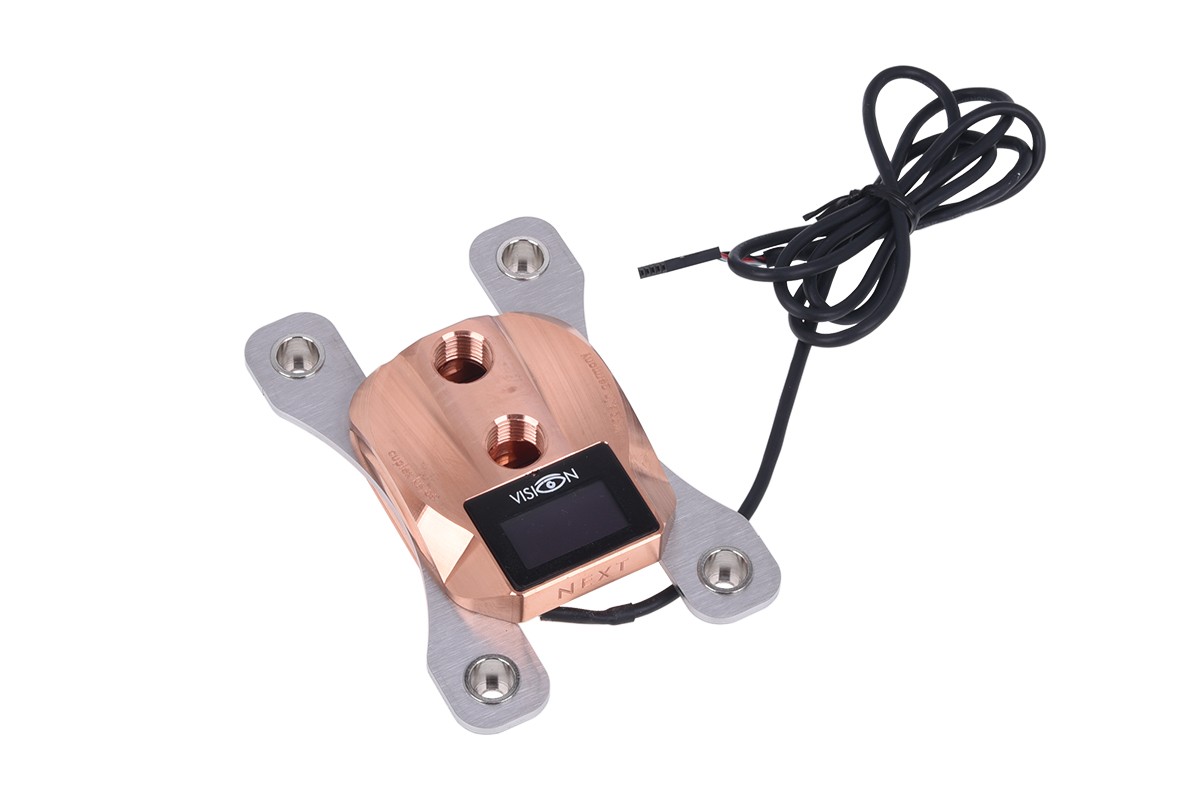

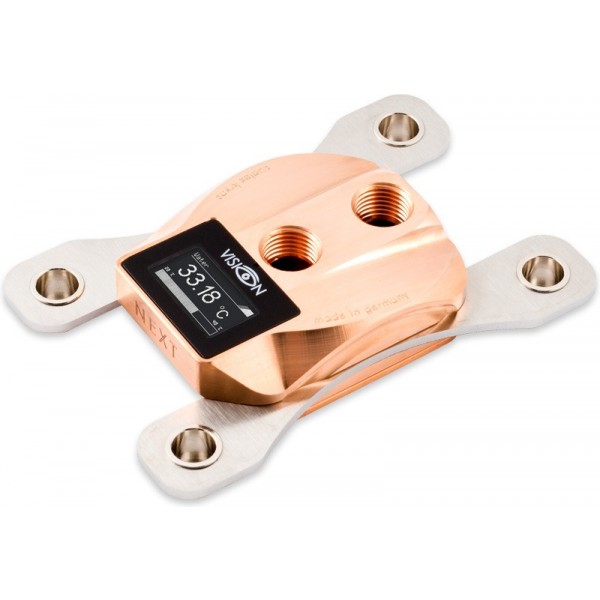

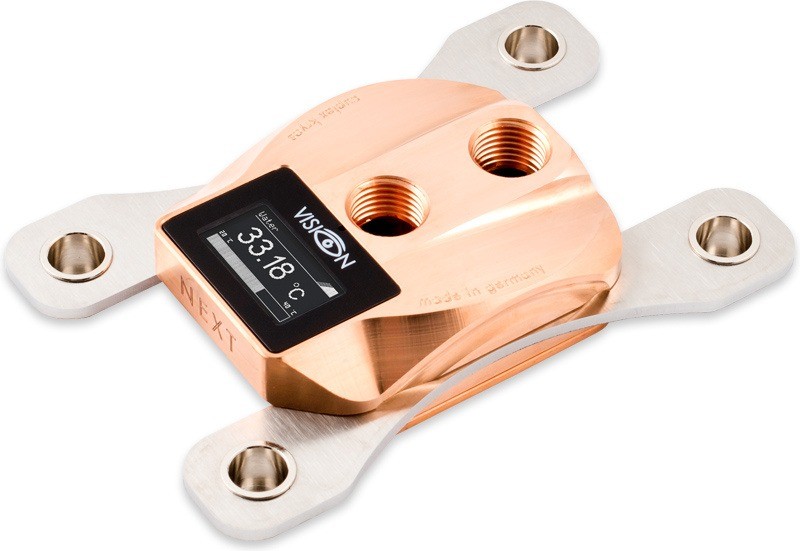

Aquacomputer Cuplex Kryos NEXT With VISION AM4, Copper/Copper (21712)

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Aquacomputer Cuplex Kryos NEXT With VISION AM4, Copper/Copper (21712)

Availability: Out of stock

Sku: 1014537

$138.95

Quick Overview

The cuplex kryos NEXT marks a new milestone in CPU water block development. Every detail has been analyzed, optimized and tested to achieve perfection in cooling performance.

Details

Product Information

The cuplex kryos NEXT marks a new milestone in CPU water block development. Every detail has been analyzed, optimized and tested to achieve perfection in cooling performance, installation procedure and product features. The result is not just a CPU water block with outstanding performance - it is a product series with various models differing in color and functionality. The VARIO models are the first CPU water blocks globally to incorporate a real-time adjustable base - never before has it been possible to adjust the geometry of a CPU block to perfectly fit the CPU while the PC is in operation. Models with VISION module are equipped with modern electronics: High resolution OLED display, integrated water temperature sensor and USB interface are just three of the features.

Base part with micro structure
The base part of the cuplex kryos NEXT is equipped with an extremely fine micro structure, the structural width is lower than 200 µm. The coolant is injected centrally through a slot-shaped nozzle and then runs to both sides of the structure. The base itself is manufactured from copper, nickel plated copper or .925 sterling silver depending on model.

Retention system
The cuplex kryos NEXT retention system consists of 2.5 mm thick stainless steel plates equipped with nickel plated spring cups. Springs and knurled screws secure the water block on the motherboard, the retention system has a very clean look when installed. All retention system versions feature a mechanical stop for optimum clamping force and even force distribution. The knurled screws can be installed by hand, additionally a hexagon socket wrench can be used for easy installation.
Water blocks for socket 115x or AM3 include a steel back plate with silicone insulation to stabilize the CPU region of the motherboard. Socket 2011, AM4 and TR4 motherboards already include a back plate as part of the CPU socket, therefore no additional back plate is required.
For optimum performance, every cuplex kryos NEXT ships with outstanding thermal compound. A syringe with 0.5 grams of Thermal Grizzly Kryonaut is included, complete with plastic spatula. This compound has a high thermal conductivity and spreads out thin and evenly between CPU and water block due to its low viscosity. The amount is sufficient for approximately five applications.

VARIO: Adjustable geometry
The geometry of the base part of cuplex kryos NEXT VARIO variants can be adjusted using four adjusting screws on the sides of the water block. Each CPU is unique - even slightest variations in height or shape of the metallic lids on top of current CPUs affect cooling performance of a water block considerably. Prior concepts to adjust the geometry of water blocks always required the water block to be disassembled and then reinstalled onto the motherboard, requiring significant time and effort. With the cuplex kryos NEXT VARIO, the geometry is perfectly adjusted in just a few moments. While monitoring core temperatures at maximum CPU load, simply change the geometry using the four adjusting screws. Temperature changes provide an immediate feedback, the perfect setting is quickly identified.

VISION: Integrated electronics
The VISION variants of the cuplex kryos NEXT are equipped with a microcontroller board and OLED display. The features include:
- Water temperature sensor integrated in water block
- Connector for flow sensor, can alternatively be used as alarm output
- USB interface
- aquabus interface for communication with an aquaero 5 or 6
- Customizable display output
- Various hardware data can be displayed from the aquasuite software, for example current CPU load
The acrylic glass variants of the cuplex kryos NEXT with VISION are additionally equipped with a RGB LED that can be controlled depending on temperature or via USB.
Due to limited space, a maximum of two cables can be threaded into the water block. The following combinations are possible:
- USB and aquabus
- USB and flow sensor or alarm output
- aquabus and flow sensor or alarm output

Material combination

Copper/Copper: Top Part: Copper, Base: Copper

Technical details

  • Dimensions:: 111 x 75 x 22 mm (not including screws)
  • Socket: AM4
  • Connection threads: G1/4
  • Distance between threads: 24 mm

Additional Information

Manufacturer Aquacomputer
Overall Dimensions 111 x 75 x 22 mm (not including screws and back plate)
Cooling Plate Material Copper
Top Cover Material Copper
Socket Type AMD AM4/AM5
Number of Ports 2x G1/4
Color Copper
Included 1x Water block 1x Mounting material (screws, springs, etc.) 1x Thermal compound Thermal Grizzly Kryonaut, approx. 0.5 grams in syringe 1x Plastic spatula 1x Instruction manual
Material Copper
