Details

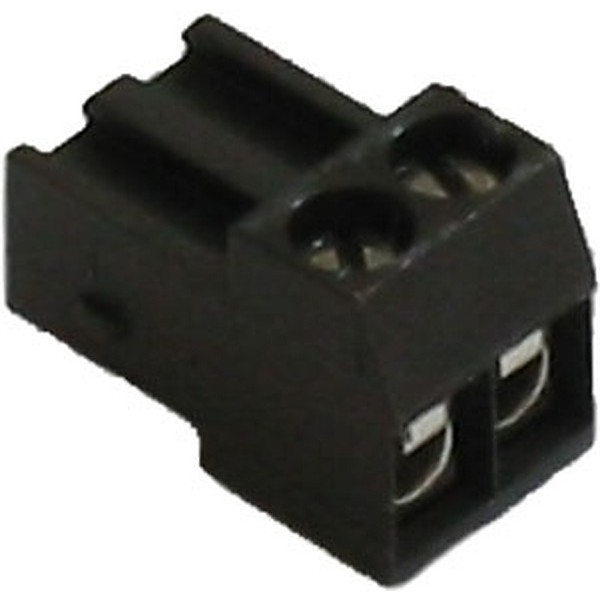

The Aquacomputer Aquaero Connector 2pol. for Relay Output (Aquaero 4) or Power Output (Aquaero 5 and 6) (53036) is a two-contact plug for connecting cables to an aquaero. It fits the potential-free contact (relay) of the aquaero 3.07 and 4.00, and the additional power outputs of the aquaero 5 and 6.
Properties
- Contacts
- 2, bipolar
- Cable connection
- screw terminals
- For
- relay of aquaero 3.07 and 4.00, power outputs of aquaero 5 and 6
How it connects
One cable is attached to the plug by means of its screw terminals. Then the plug can be inserted into the appropriate connector on the aquaero, the relay contact or a power output.
Matching parts
Aquacomputer names this plug for the relay of an aquaero 3.07 or 4.00 when it is used with the PS_ON# lead of the 24-pin power connect cable (53047). For the relay output of an aquaero 5 or 6 the matching part is the 3-pole plug for relay output (53080).
Notes
- Please observe the maximum load capacity of the relay output of the aquaero.
