Details

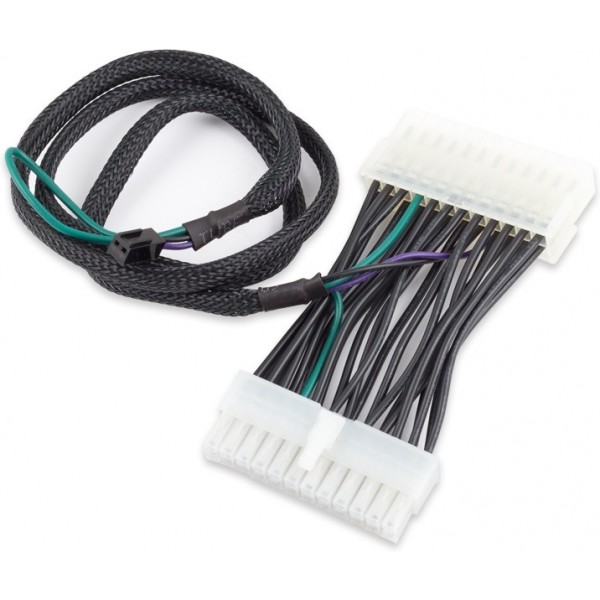

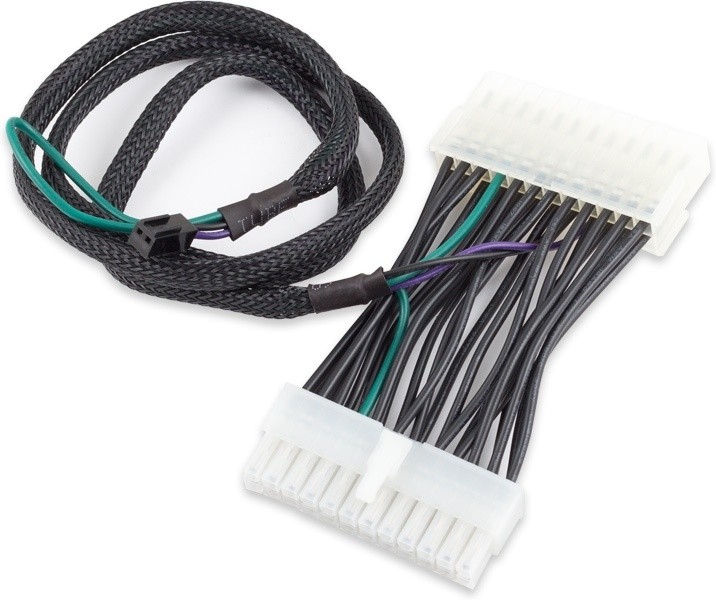

The Aquacomputer Aquaero 24-Pin PowerConnect Cable (53047) is a 24-pin ATX adapter plug for an aquaero 5 or aquaduct XT controller. It works as a power passthrough with an attachment of two leads: a standby power cable and an extended ATX PS_ON# cable (green) for the relay.
Properties
- Connector
- 24-pin ATX adapter, two ATX plugs
- Length
- approx. 5 cm between the ATX plugs
- Leads
- standby power and PS_ON# (green), about 70 cm each
- For
- aquaero 5/6, aquaduct XT
How it is used
The adapter goes into the main ATX power line, where only about 5 cm of cable separates its two 24-pin plugs. From there the standby lead supplies an aquaero 5 or aquaduct XT with standby power. The green PS_ON# lead is long enough to reach the relay of an aquaero 5/6 or aquaduct XT. It is an accessory used with the aquaero Fan Controller series and Aquacomputer's other monitoring and control devices.
What the relay needs
The PS_ON# lead needs an additional plug before it can go into the aquaero relay. For aquaero 5 and 6 that is the plug for relay output, part no. 53080. For aquaero 3.07 and 4.00 it is the 2-pole connector, part no. 53036. Controllers themselves are in our fan controllers section.
