Details

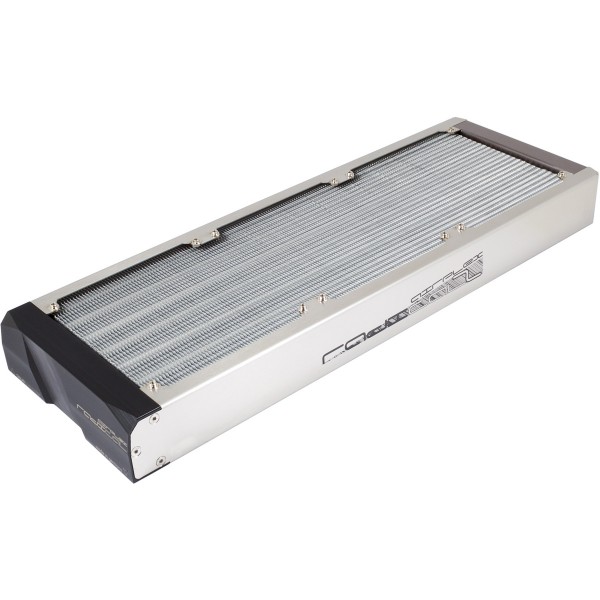

The Aquacomputer Airplex Radical 2/360 | Aluminum (33707) is a 360 mm water cooling radiator from the airplex radical series, made without welding and fitted with nickel plated brass threaded inserts for the fan screws. Twelve threaded M3 inserts and twelve M3 x 25 mounting screws are in the box, for fans on one side.
Properties
- Size
- 360 mm (2/360)
- Coolant contact
- Seals, Delrin, copper and stainless steel only
- Threaded inserts
- Nickel plated brass, M3
- Mounting screws
- 12x M3 x 25, for one side
Built like the modularity series, reduced to function
The airplex radical series combines some key features of Aquacomputer's renowned airplex modularity series in a new design, radically reduced to function and performance. In Aquacomputer's words, the result is a radiator of excellent quality for a competitive price. Just as with the modularity series, no welding is performed during production, preventing any welding residues inside the radiator. The coolant does not have contact to materials other than seals, Delrin, copper and stainless steel.
Threaded inserts for the fans
For an improved and easier installation process, this radiator comes with threaded inserts made from nickel plated brass. They protrude into the mounting holes of the fans, and therefore the fans are "automatically" aligned correctly to the threads. Aquacomputer calls that extremely convenient, especially with large radiators. Additionally, using the inserts results in a deeper thread. The screw can be positioned farther away from the tubes and fins, reducing the risk to damage the radiator by using too long screws.
If the radiator goes in without fans, the inserts can also be installed upside-down. The resulting surface is nearly flat, so there is no gap left between radiator and PC case. Both sides of the radiator are equipped with slide rails for the inserts, and small notches in the slide rails lock each insert when installed. Inserts for one side of the radiator are included in delivery.
What the loop needs
The twelve M3 x 25 mounting screws in the box hold the fans on one side. Additional inserts are available separately, for example to fit fans on the second side: the threaded insets for airplex radical, 4 pieces (33559). The ports take fittings from our fittings section.
In the box
- Radiator
- 12x threaded M3 inserts
- 12x M3 x 25 mounting screws
