Details

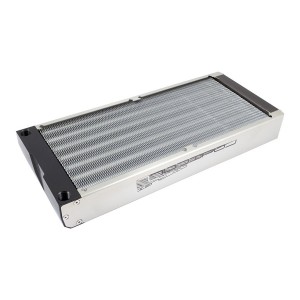

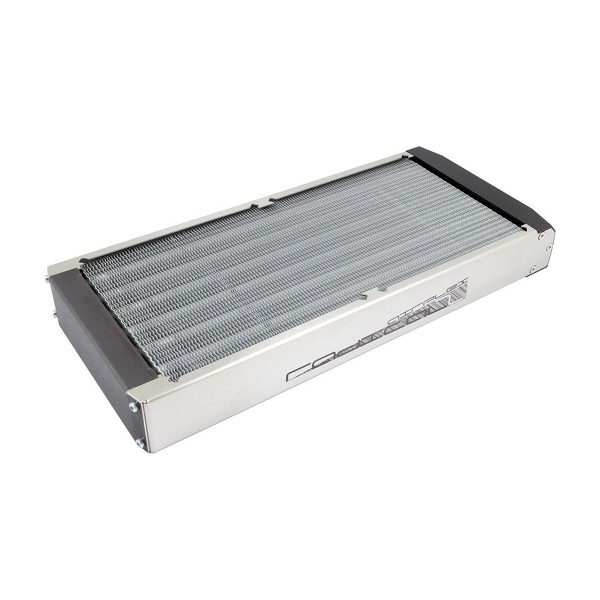

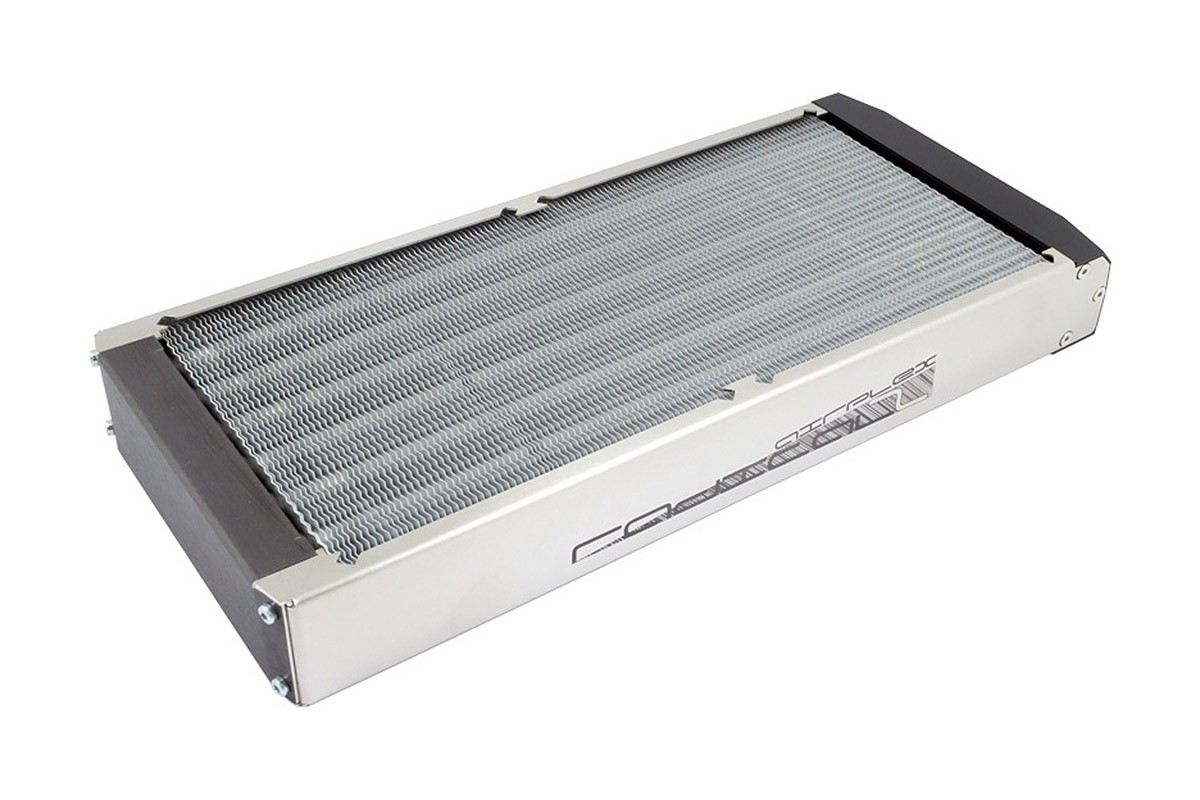

The Aquacomputer Airplex Radical 2/280, Aluminum Fins (33705) is a 280 mm water cooling radiator for two 140 mm fans, 40 mm thick, with aluminum fins on copper tubes and G1/4 connection threads. Eight M3 threaded inserts and eight M3 x 25 screws come with it.
Properties
- Fans
- 2x 140 mm
- Size
- 320 x 140 x 40 mm
- Ports
- G1/4 connection threads
- Fins
- Aluminum, on copper tubes
- Frame
- Stainless steel
Built like the modularity series, reduced to function
The airplex radical series combines some key features of Aquacomputer's renowned airplex modularity series in a new design, radically reduced to function and performance. Aquacomputer says this results in a radiator of excellent quality for a competitive price. Just as with the airplex modularity series, no welding is performed during the production process. That is what is preventing welding residues inside the radiator. The coolant does not have contact to any materials other than seals, Delrin, copper and stainless steel.
Threaded inserts for the fans
For an improved and easier installation, the radiator comes with threaded inserts made from nickel plated brass. They protrude into the mounting holes of the fans, so the fans are "automatically" aligned correctly to the threads, which Aquacomputer calls extremely convenient, especially with large radiators. Additionally, the inserts give a deeper thread. The screw can therefore be positioned farther away from the tubes and fins, reducing the risk to damage the radiator by using too long screws.
If the radiator is to be installed without fans, the inserts can also be installed upside-down. The resulting surface is nearly flat; as a result, there is no gap between the radiator and the PC case. Both sides of the radiator are equipped with slide rails for the inserts, and small notches in the rails lock each insert when installed. Inserts for one side are included in delivery.
Frame and size
The radiator frame is made from stainless steel; for optical purposes the rear is chromated in dark gray. In relation to the fin dimensions, the total dimensions of the radiator are extremely compact: 320 x 140 x 40 mm.
What the loop needs
The radiator takes two 140 mm fans, and eight M3 x 25 screws are in the box. Additional inserts are available separately, for example to fit fans on the second side: the threaded insets for airplex radical, 4 pieces (33559). Each port in use takes one G1/4 fitting from our fittings section.
Technical details
| Dimensions | 320 x 140 x 40 mm |
| Connection threads | G1/4 |
| Threaded inserts | M3 |
| Connection terminal material | Delrin |
| Tube material | Copper |
| Fin material | Aluminum |
| Frame material | Stainless steel |
In the box
- One radiator
- 8 threaded inserts M3
- 8 screws M3 x 25
