Details

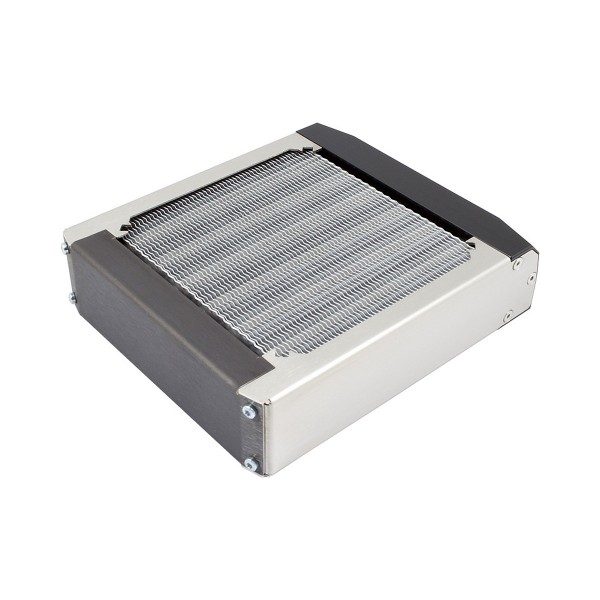

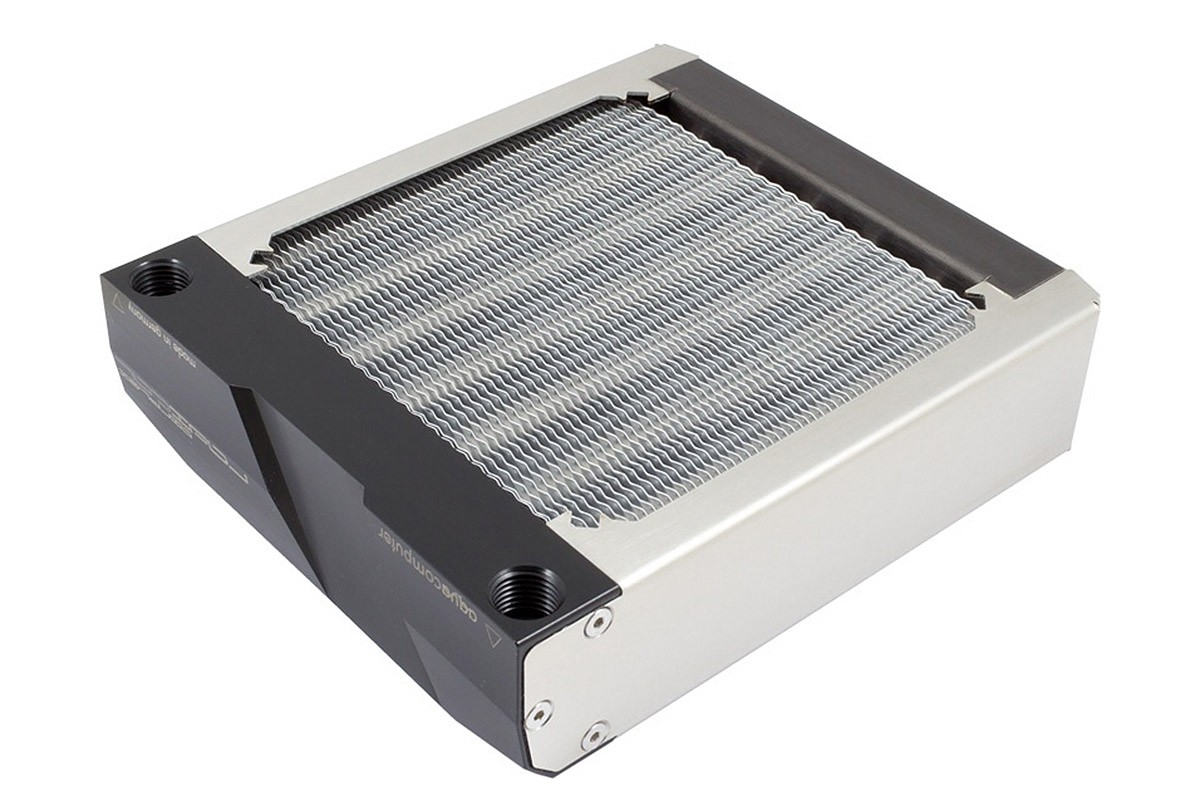

The Aquacomputer Airplex Radical 2/120, Aluminum Fins (33701) is a 120 mm water cooling radiator for one 120 mm fan, 40 mm thick, with aluminum fins on copper tubes and G1/4 connection threads. Four M3 threaded inserts and four M3 x 25 screws come with it.
Properties
- Fans
- 1x 120 mm
- Size
- 160 x 140 x 40 mm
- Ports
- G1/4 connection threads
- Fins
- Aluminum, on copper tubes
- Frame
- Stainless steel
Built like the modularity series, reduced to function
The airplex radical series combines some key features of Aquacomputer's renowned airplex modularity series in a new design, radically reduced to function and performance. Aquacomputer says the result is a radiator of excellent quality for a competitive price. Just as with the modularity series, no welding is performed during production, preventing any welding residues inside the radiator. The coolant does not have contact with materials other than seals, Delrin, copper and stainless steel.
Threaded inserts for the fans
For an improved and easier installation process, the radiator comes equipped with threaded inserts made from nickel plated brass. They protrude into the mounting holes of the fans, so the fans are "automatically" aligned correctly to the threads, which Aquacomputer calls extremely convenient, especially with large radiators. Additionally, each insert results in a deeper thread. The screw can therefore be positioned farther away from the tubes and fins, reducing the risk to damage the radiator by using too long screws.
If this radiator is to go in without fans, the inserts can also be turned upside-down, resulting in a nearly flat surface, so there is no gap between radiator and PC case. Slide rails for the inserts run along both sides of the radiator, and small notches in the rails lock each insert when installed. Inserts for one side of the radiator are included in delivery.
Frame and size

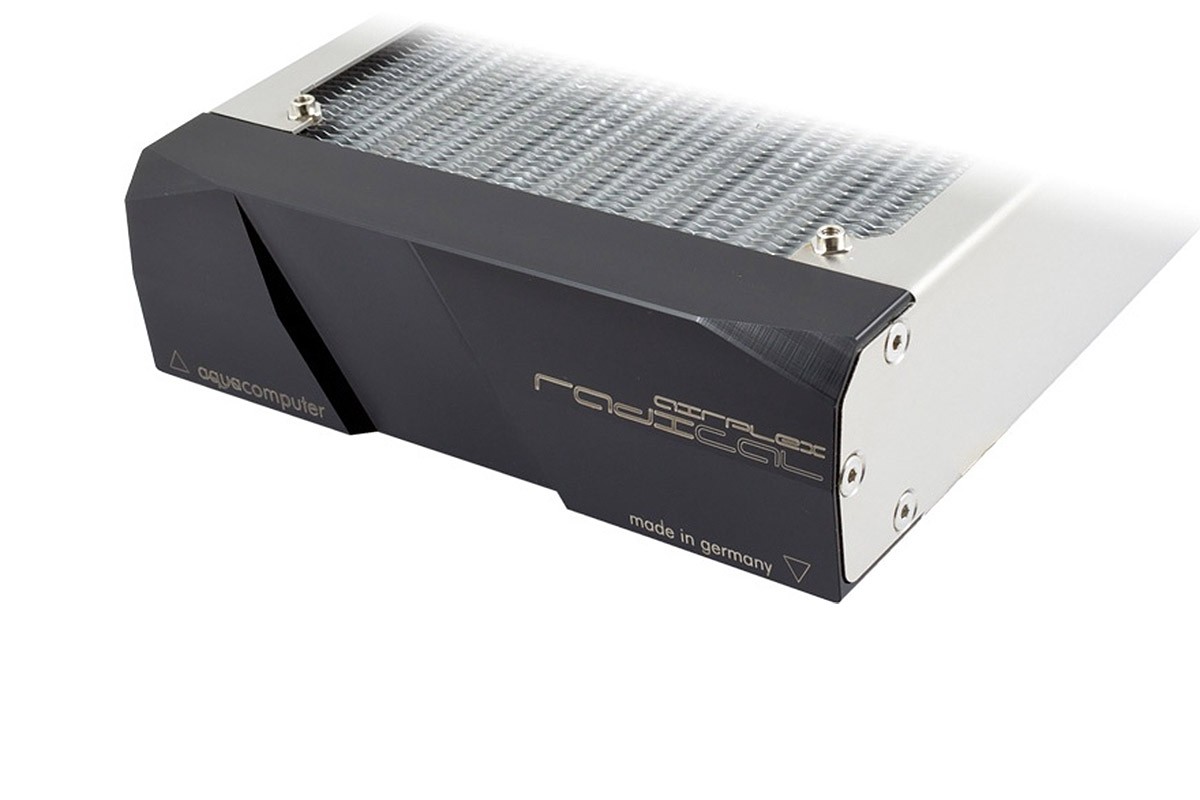

The frame is made from stainless steel, and for optical purposes its rear is chromated in dark gray. Aquacomputer points out that the total dimensions are extremely compact in relation to the fin dimensions: 160 x 140 x 40 mm.
What the loop needs
The radiator takes one 120 mm fan. Please note: these radiators include enough mounting hardware for a single side only. If a push/pull system is desired, you will need extra mounting hardware, and the two parts for that can be found below. Additional inserts are available separately as the Threaded Insets for Airplex Radical, 4 Pieces (33559). Longer screws for the second fan can be the Alphacool Eisberg Radiator Screw M3 x 30 mm, 4 Pcs (24690). Each port in use takes one G1/4 fitting from our fittings section.
Technical details
| Dimensions | 160 x 140 x 40 mm |
| Connection threads | G1/4 |
| Threaded inserts | M3 |
| Connection terminal material | Delrin |
| Tube material | Copper |
| Fin material | Aluminum |
| Frame material | Stainless steel |
In the box
- One radiator
- 4 threaded inserts M3
- 4 screws M3 x 25
