Details

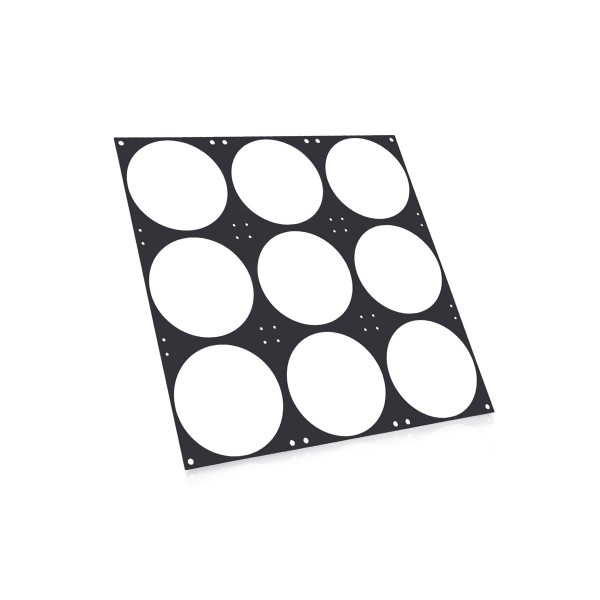

The Alphacool Nova 1080 Fan Grill 9x120mm - Black is a radiator fan shroud with mounts for nine 120 mm fans, one grill per pack. It goes on the second side of Alphacool's NexXxoS XT45 and UT60 Full Copper 1080mm Nova radiators. Note that no mounting screws are included in the delivery.
Properties
- Fits
- NexXxoS XT45 & UT60 Full Copper 1080mm Nova radiators
- Fans
- 9x120mm
- Size (L x W x H)
- 361 x 361 x 1.5 mm
- Material
- SC-steel (black powder coated)
- Pieces in the pack
- 1
Push & pull on a Nova 1080
This additional frame allows you to operate the radiator in push & pull mode, which is the possibility the cover offers. Alphacool also calls it the Nova 1080 fan cover.
What the fans need
The frame has 24 threaded holes with an M3 thread diameter and 12 mounting holes of 4.5 mm. Screws for that thread are in our M3 screws section, and nine 120mm fans can be mounted on the frame.
Technical data
| L x W x H | 361 x 361 x 1.5 mm |
| Material | SC-steel (black powder coated) |
| Color | Black |
| Weight | 485 g |
| Fan mounts | 120 mm |
| Number of fan mounts | 9 |
| Threaded hole | 24 x M3 |
| Diameter of mounting holes | 12 x 4.5 mm |
In the box
- 1x Fan Grill
