Details

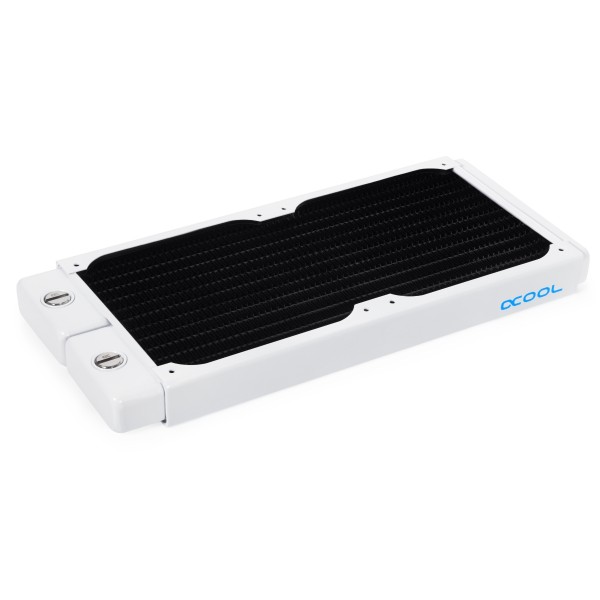

The Alphacool NexXxoS ST30 Full Copper 240mm Radiator V.2 - White Special Edition is a white 240 mm radiator for two 120 mm fans, 30 mm thick, with five G1/4 ports. The next thickness up in the same white finish is the XT45 Full Copper 240mm V.2 radiator.
Properties
- Fans
- 2x 120 mm one-sided, 4 double-sided
- Size (L x W x H)
- 271.5 x 124 x 30 mm
- Thickness
- 30 mm
- Ports
- 5x G1/4
- Material
- copper cooling fins, channels and pre-chamber, steel outer housing
- Fin density
- 15 FPI
The V.2 series
Alphacool describes the NexXxoS V.2 radiator as the further development of the already established NexXxoS V.1 series. In its words the radiator rightly takes its place among Alphacool's high-end full copper radiators. It points to the fresh design in modern, noble white and the numerous technical details, which Alphacool says make it "the perfect partner for your own water cooling system".
Uncompromising in the choice of materials
Alphacool says it is the only manufacturer worldwide to use exclusively copper for all water-bearing parts in the radiator. Pure copper is what the pre-chambers, the cooling fins and the cooling channels are all made of. Alphacool names the only exceptions: the threaded inserts are made of brass and the outer casing of the radiator of sheet steel.
Sufficient cooling capacity
To maximize the performance of the radiator, Alphacool says it reaches deep into its bag of tricks. It uses pure copper due to the high thermal conductivity of 400 W/mK (in comparison: aluminum 236 W/mK). The radiator has a special fin density with a fin spacing of 15 FPI, which is meant to give optimal airflow and performance. All of the cooling fins are additionally serrated. These serrations act as tiny wings that direct the airflow in the desired direction and ensure controlled air turbulence. By Alphacool's account this increases the cooling capacity and minimizes possible flow noise.
Patented screw plugs
The stop fittings that all NexXxoS V.2 radiators use are patented by Alphacool. Anyone who has mounted a radiator on the front or in the roof of a case is familiar with the fact behind them: protruding stop fittings can stop the radiator from sitting flush. Here the stop fittings are completely recessed in the radiator and sit flush with its surface, which Alphacool offers as an excellent solution. For Alphacool this means that nothing stands in the way of a clean installation. Of course, Alphacool adds, the radiators also look much more elegant with the flat stop fittings.
Plenty of connection options
On each side, all versions of the NexXxoS V.2 radiators have two options for IN and OUT. A fill or vent port sits on the opposite end, and it can also be used to drain the water circuit.
What the loop needs
The radiator has 5x G1/4 threads. A loop uses two of them, so the radiator takes two fittings, and the other three take the three screw plugs in the box. Remove the protective caps first and close all threads you don't need with plugs. Two 120 mm fans fit on one side, four with both sides fitted, on M3 threads. The M3x8 screws are for case mounting, the M3x30 screws for fan mounting and the M3x35 screws for mounting a fan with a damper.
Safety first
The radiator has a special protective plate that prevents fan or mounting screws from being screwed in too deeply. These plates sit beneath the screw holes that are used to mount the fans to the radiator, or for mounting the radiator to the case. The plate protects the cooling fins and water channels underneath from damage.
Technical data
| L x W x H | 271.5 x 124 x 30 mm (+/- 3% tolerance in the range of the pre-chamber) |
| Quantity of cooling channels | 12 |
| Material cooling fins, channels & pre-chamber | copper |
| Material outer housing | steel |
| Fins per Inch | 15 |
| Threads | 5x G1/4 |
| Thread size fan mounting | M3 |
| Fan size | 120 mm |
| Fan slots | 2 one-sided / 4 double-sided |
| Max working temperature | 60 °C |
| Weight | 581 g |
| Color | White |
| Pressure tested | 0.8 bar |
Notes
- Before use, rinse the radiator with distilled water or Alphacool Cape Kelvin Catcher, and read the safety instructions before starting the installation.
- Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.
In the box
- 1x Alphacool NexXxoS ST30 Full Copper 240mm Radiator V.2, White Special Edition
- 8x M3x8 screw
- 8x M3x30 screw
- 2x M3x35 screw
- 3x screw plug
- 1x Allen key
- 1x screw plug tool
Downloads: Alphacool's manual PDF and datasheet PDF.
