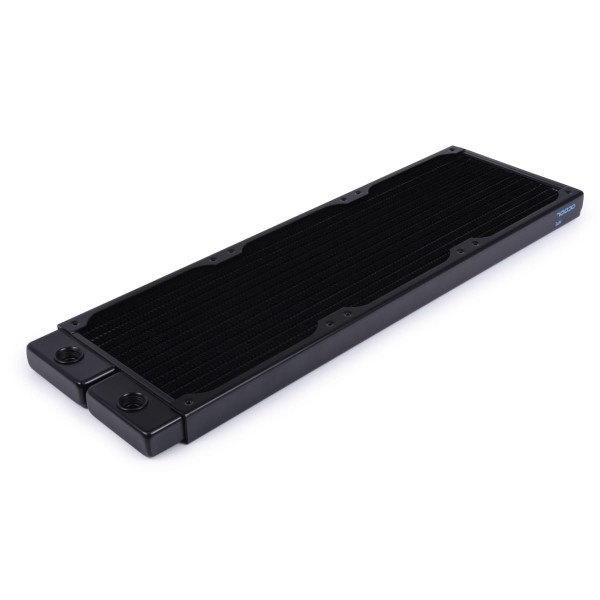

Alphacool NexXxoS HPE-20 Full Copper 360mm Radiator (14437)

The Alphacool NexXxoS HPE-20 Full Copper 360mm Radiator is a 360 mm radiator for three 120 mm fans, 20 mm thick, for a custom water cooling loop. It has one IN and one OUT connection with G1/4 threads and comes in black.

Properties

Fans

120 mm, three on one side or six on both sides

Size (L x W x H)

390 x 120 x 20 mm

Thickness

20 mm

Ports

2x G1/4 IN/OUT

Material

Copper fins, pre-chambers and channels, brass threads, stainless steel outer housing

Fin density

19 FPI

NexXxoS Full Copper

Alphacool says it has dominated the market with the NexXxoS Full Copper radiator series for more than a decade, and calls its extensive portfolio of radiator variants unique in the world. Just like the portfolio, it points to its manufacturing process, which allows it to produce all water-carrying parts and the cooling fins out of pure copper. As a result, in Alphacool's words, the series offers the highest thermal conductivity of any radiator on the market. Alphacool adds that, thanks to their exceptional performance, the radiators can easily dissipate even extremely high waste heat and have become essential in many areas of the cooling industry.

The next step in evolution: NexXxoS HPE Full Copper Radiator!

The HPE radiator uses the same materials as previous NexXxos models, but Alphacool takes it a step further technically. Due to a condensed internal structure, the number of water channels and copper fins could be increased. Thus a larger volume of water is in direct contact with the cooling fins, and Alphacool describes the heat transfer as enormously improved. It says the higher number of fin rows and their shortening also makes much more efficient use of the cooling surface.

Alphacool reports comparison tests with the conventional NexXxos radiator that have shown a possible performance increase of 4.5K when using the HPE radiator. At higher ambient temperatures and higher fan speeds, it says the performance gap with the normal radiators even increases progressively, reaching up to 6K. Alphacool gives us no test setup with these two figures for this radiator. Its data sheet adds 1.2x increased water throughput and 20% more efficient heat transfer compared to the NexXxos standard, with 100% of the internal structure made of copper.

Space-saving & flexible to use

This is one of Alphacool's compact slim radiators, with a low overall height of only 20 mm. Alphacool says that lets them be mounted very flexibly in even the tightest cases.

Connection options & mounting

The two ports sit in the pre-chamber area, so the radiator takes two G1/4 fittings, each with a thread no longer than 5 mm. It holds 120 mm fans on M3 threads. All screws for mounting in the case and for mounting the fans are included with the radiator: twelve M3x5 case mounting screws and twelve M3x30 fan screws. Additional screws are not usually required.

Safety first

Special protective plates are placed under all mounting holes of the radiator. They prevent the screws from being screwed in too deeply, which protects the cooling fins and water channels underneath from damage.

The next thickness on our shelf in this fan size is the NexXxoS HPE-30 Full Copper 360mm Radiator.

Technical data radiator

Notes

• Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.

In the box

• 1x NexXxoS HPE-20 Full Copper 360mm Radiator, black
• 12x M3x5 case mounting screws
• 12x M3x30 fan screws
• 1x Allen key
• 1x Plug tool

Alphacool's Datasheet (EN) is a PDF. Its 3D model is an STP file that also opens in the 3D viewer.
