Details

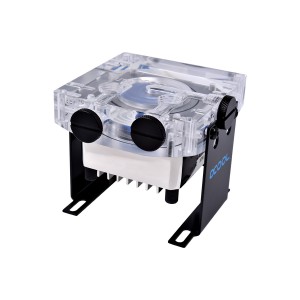

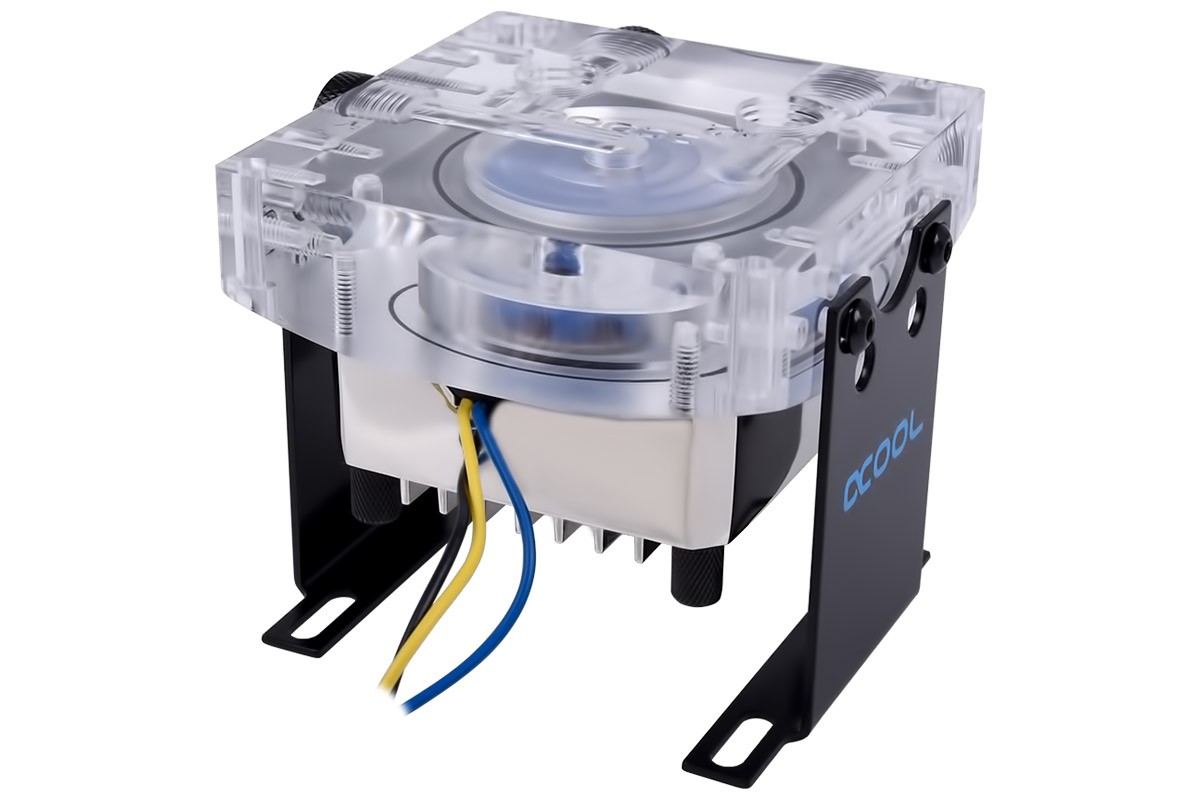

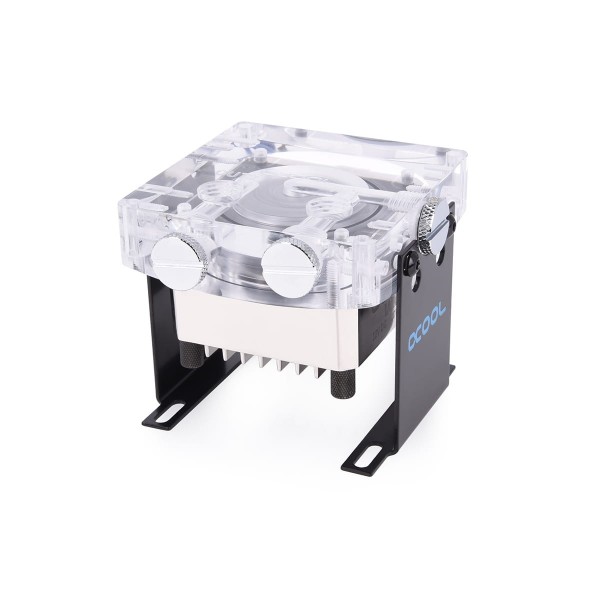

Now offering a more silent DDC pump combo. With a slight decrease in wattage you get excellent acoustic output! For the most common water cooling system, where the CPU and GPU are watercooled, this pump should be the first choice.
A brass housing replaces that of the standard plastic DDC pump. This new housing promises a longer life of the pump. Cooling fins on the assembly help direct heat away from the pump circuit board. Heat transfer is further aided by a thermal pad between the two surfaces.
The included Alphacool V.2 Eisdecke pump top offers the possibility of three G1 / 4 "connections for the inlet and two G1 / 4" connections for the outlet.
Inlet locations: front, side, top
Outlet locations: Front, Top
Included are three stop fittings to plug the unused inlet/outlet locations.
Another feature is the included decoupling option. Rubber damped M4 screws can be used to reduce vibration transfer to computer case, further reducing noise.
The preassembled bracket allows this pump set to be mounted directly to the bottom of your case.
Additional Information
| NE US Item # | 9SIA9F95KT4450 |
|---|---|
| NE CA Item # | 9SIAA5K5KT4467 |
| Amazon ASIN | NA |
| Manufacturer | Alphacool |
| Overall Dimensions | 80 x 80 x 75 |
| Color | Clear |
| Product Type | Pump and Top Combo |
| Voltage | 12V |
| Max Current Draw | ˂ 1A |
| Head | 2,44m, Good (2 to 4m) |
| Max Flow Rate | 200l/h, Standard (smaller than 500l/h) |
| Variable Speed | No |
| Material | Plexi |
| Includes Pump Top | Yes |
| Power Connector | 4-Pin Molex |
| Number of Ports | 5x G1/4 |
| Included | 1x Alphacool Laing DDC310 pump 1x Alphacool Laing DDC metal bottom - silver 1x Alphacool Laing DDC Eisdecke V.2 plexi 1x Decoupling mounting hardware set |
