Details

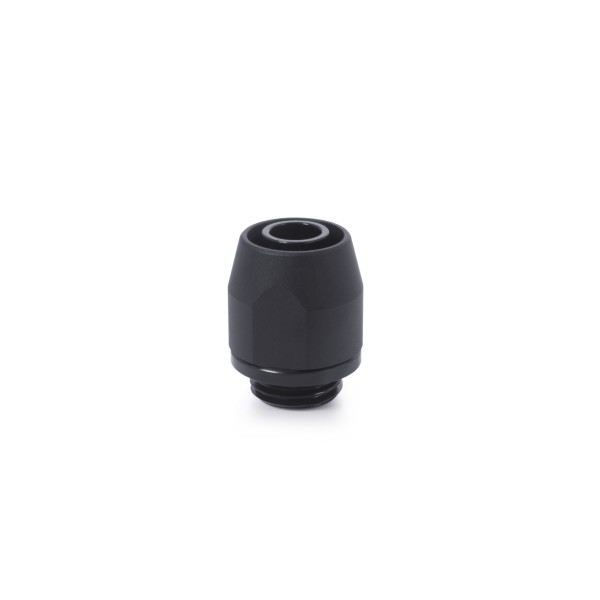

The Alphacool HF Compression Fitting TPV Metal - 12.7/7.6mm Straight - Black is a straight metal compression fitting with a G1/4 thread for 12.7/7.6 mm TPV hose, one fitting per pack. It was specially developed for use with Alphacool TPV hoses. Alphacool also calls it the TPV Metal Connector.
Properties
- Thread
- G1/4, thread length 5.5 mm
- Tube size
- 12.7/7.6 mm TPV hose
- Angle
- Straight
- Color
- Black
- Material
- Brass/aluminum
- Pieces in the pack
- 1
Enterprise Solutions fitting
The connector has its origins in Alphacool's Enterprise Solutions line of products. Alphacool has previously used these TPV water cooling connectors exclusively for servers and workstations. During development, particular attention was paid to space-saving components. Compared to the nylon version, the metal connection is a whole 4 mm shorter.
What a run needs
The threaded side screws into any G1/4 port, and the other side takes 12.7/7.6 mm TPV hose, such as the AlphaTube TPV 12.7 / 7.6. In combination with the matching hose, the metal fitting can be tightened firmly, resulting in what Alphacool calls a remarkable tensile strength. A hose run takes two fittings, one at each end. More fittings for this hose size are in our 12.7/7.6mm fittings section.
Technical Specifications
| Dimensions (L x D) | 24 x 18 mm |
| Material | brass/aluminum |
| Pressure tested | 4.2 bar |
| Max working temperature | 60 °C |
| Thread | G1/4 |
| Thread length | 5.5 mm |
| Hose size | 12.7/7.6 mm |
| Color | black |
Notes
- Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.
In the box
- 1x Alphacool HF Compression Fitting TPV Metal - 12.7/7.6mm Straight - Black (17638)
Alphacool's data sheet is a PDF. Its 3D model of this fitting is an STP file, and the 3D viewer shows it from every side.
