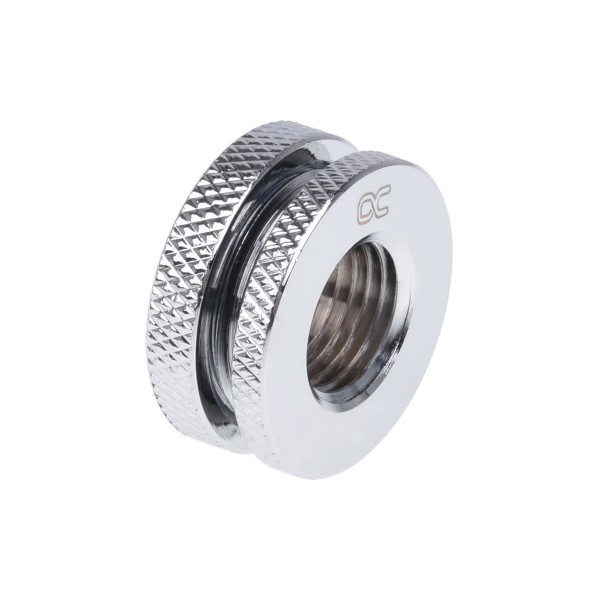

Alphacool G1/4 Bulkhead Connector Short Version - Chrome (17423)

The Alphacool G1/4 Bulkhead Connector Short Version - Chrome is a bulkhead fitting with a G1/4 internal thread that carries a hose through a case panel, one fitting per pack. Note the size of the mounting holes: 21 mm.

Properties

Thread

G1/4 internal thread

Mounting hole

21 mm

Material

Brass, chromated

Color

Chrome

Size

Length 12 mm, width 25 mm

Pieces in the pack

1

What it does

The fitting is used to guide a hose through a housing. It is screwed firmly to the housing with its lock nut. Alphacool lists it as the HF bulkhead fitting short version.

High flow

Alphacool says its fittings go new ways in looks, quality of manufacturing, colors and choice. In its words the inner diameter truly deserves the "high flow" attribute.

Finish and colors

Chrome, Deep Black and Shiny Copper were the first three colors of the range, which Alphacool says offer something for every taste. Alphacool designed the product matching series to look elegant in every system while highlighting the individual design of the computer. With these fittings in combination with Alphacool tubing, the maker says, the limits are endless. A new process during chromatising (chromating) leaves the surface finish completely connected with the brass body, hence ensuring permanent intense colors. Alphacool adds that it prevents peeling of the chrome layer. On some of the fittings the Alphacool name in blue lettering additionally underlines the individuality of these items.

What a run needs

Once the fitting sits in the panel, the 1/4 inch internal thread takes standard hose connections, so a pass-through uses two parts from our fittings section, one on each side of the panel.

Alphacool's 3D model of this fitting is an STP file, and the 3D viewer shows it from every side.
