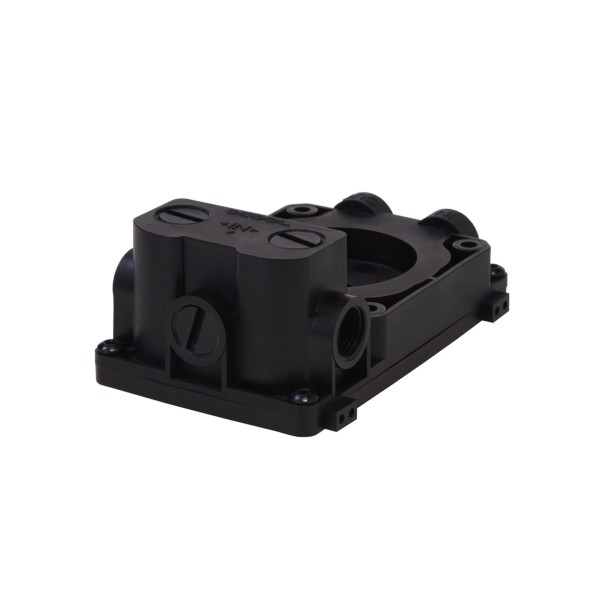

The Alphacool ES Reservoir 1U - DDC Version is a reservoir with an integrated pump top for a DDC pump, 100.20 x 67.87 x 40.00 mm, specially designed for 1U server racks. No pump is pre-installed, and it takes a DDC version with the original Laing pump housing. Other pump housings may be larger and may not fit the reservoir. The taller one for 2U racks is the ES Reservoir 2U.
Properties
- Pump
- For DDC, not included
- Ports
- 7x G1/4: 1x OUT, 6x IN
- Size (L x W x H)
- 100.20 x 67.87 x 40.00 mm
- Material
- Acetal
- Color
- Black
Reservoir and pump top in one
This is an expansion tank and a pump top in a single, extremely compact part for a liquid cooling loop. Alphacool says the pump top allows for extremely high pump performance from the DDC, and that the large reservoir is more than sufficient for a loop in a 1U server rack. Alphacool also describes it as an expansion tank especially for 1U racks, with extensive connection and mounting options. It is part of the Enterprise Solutions series, and the pump is fully enclosed.
How can I connect the reservoir?
It offers a total of seven G1/4 connections, and the connection possibilities are distributed on all sides. One IN is located on each side. Additionally, the top side has two IN that are mainly used for filling: fill directly through one while the second lets air escape more easily during the process. Due to that many connection possibilities, various mounting options are possible.
What mounting options does the expansion tank offer?
There are mounting holes on the sides that allow you to mount the tank in the standard 2.5" hard disk space, where it is screwed in place like a 2.5" SSD. If there is no corresponding mounting space available, use the included Velcro pad. Both parts of the Velcro tape have an adhesive surface, allowing you to attach one part to the case and one to the reservoir before simply sticking them together. The assembly is finished at that point, and it is easily removed again if needed.
Direct radiator mounting is possible
The scope of delivery includes a double nipple fitting, with which the reservoir is screwed directly to a radiator of the Alphacool NexXxoS series. For 1U housings Alphacool offers special 40 mm radiators from the NexXxoS X-Flow series. With these, the reservoir is mounted via the double nipple, on the side or in front of the radiator. That saves a lot of space instead of connecting the two with a longer hose. The double nipple has two rotatable sides: one is screwed into the radiator and the other into the tank.
Installation of the pump
Alphacool calls the installation of the pump very easy: the O-ring is put on, then the pump is placed into the pump top and fixed with four screws. Please note the housing limit above when you pick one from our DDC pumps.
What the loop needs
The reservoir has seven ports and the box holds five screw plugs. A loop uses the OUT and at least one IN, and every unused inlet is closed with a plug, tightened with the plug tool. To fill, make sure all openings are closed, then pour through the upper fill port with a funnel or beaker. The water level drops when the pump first runs, so keep filling until it stops dropping and the pump cannot run dry.
Technical details
| Dimensions (L x W x H) | 100.20 x 67.87 x 40.00 mm |
| Material | Acetal |
| Preinstalled pump | No |
| Connector | G1/4 inner thread |
| Fillport | G1/4 inner thread |
| LED hole | Not available |
| Pump compatibility | For DDC |
| Model of reservoir | 1x 3.5" Bayres |
| Color | black |
Notes
- Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.
In the box
- 1x ES Reservoir 1U
- 1x velcro mat
- 5x screw plug
- 1x double nipple
- 4x 3x6
- 4x M4x35
- 1x screw plug tool
Download Alphacool's PDF manual and DataSheet here. Its 3D model of this reservoir is an STP file, and the 3D viewer shows it from every side.
