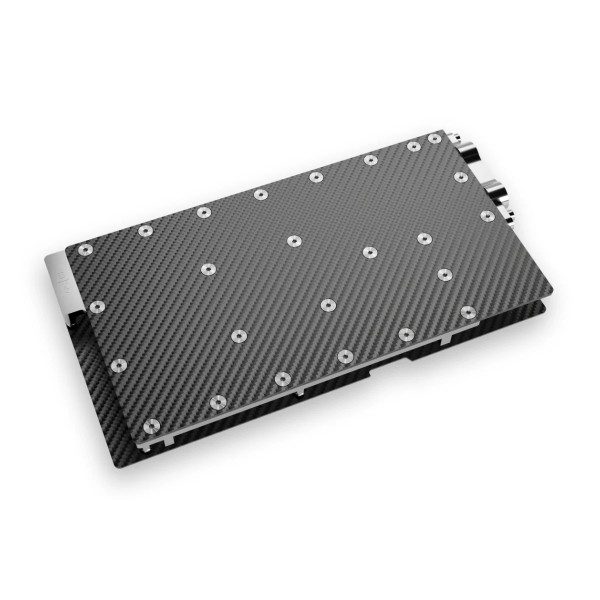

Alphacool ES Geforce RTX 5090 Gaming 1-Slot Design (10292)

The Alphacool ES Geforce RTX 5090 Gaming 1-Slot Design is a GPU water block for Gigabyte graphics cards with the Nvidia GeForce RTX 5090 chip. They are the GAMING OC, the WINDFORCE OC, the AORUS MASTER and the AORUS MASTER ICE. It is a 1-slot cooler for server cases and workstations, with both ports at the rear, and the carbon backplate is in the box.

Properties

Fits

Gigabyte GeForce RTX 5090 GAMING OC, WINDFORCE OC, AORUS MASTER and AORUS MASTER ICE

Cold plate

Chrome-plated copper

Top

Carbon plate

Ports

2 x G1/4, at the rear

Backplate

Carbon, included

Height

1-slot, 19.20 mm

Compatibility

Alphacool lists these cards for this block:

• Gigabyte AORUS GeForce RTX 5090 MASTER 32G (GV-N5090AORUS M-32GD)
• Gigabyte AORUS GeForce RTX 5090 MASTER ICE 32G (GV-N5090AORUSM ICE-32GD)
• Gigabyte GeForce RTX 5090 GAMING OC 32G (GV-N5090GAMING OC-32GD)
• Gigabyte GeForce RTX 5090 WINDFORCE 32G (GV-N5090WF3-32GD)
• Gigabyte GeForce RTX 5090 WINDFORCE OC 32G (GV-N5090WF3OC-32GD)

The block was built for one PCB layout, so check the model number of your card against this list before ordering. Alphacool's GPU configurator shows the cards with pictures, and its Compatibility List for Nvidia cards names the block for each card. Alphacool's Core block for these Gigabyte cards is the Core Geforce RTX 5090 Gaming + Windforce.

1-slot design for servers and workstations

Alphacool is expanding its Enterprise series with the latest 1-slot water coolers for the current Nvidia GeForce RTX generation. It says these solutions are specifically designed for use in server cases and workstations and enable efficient cooling, even in densely populated systems. By using a thin and extremely stable carbon plate, Alphacool could design this cooler as a 1-slot cooler without compromising on the copper block. The brass connectors are located at the rear. Combined with the thin plate, that means multiple coolers can be easily stacked on top of each other or side by side in the server case. Alphacool calls this a sophisticated design that saves space, simplifies tubing and enables seamless integration into the water circuit.

Copper and chrome plating

For all water-carrying parts, high-quality copper is used. Alphacool describes it as offering almost twice the thermal conductivity of aluminum. Furthermore, the copper is chrome-plated instead of nickel-plated, which it says is providing additional protection for the cooler. It describes the chrome plating as more resistant to acids, scratches and other damage, effectively preventing coating chipping.

Flow and testing

Technically, Alphacool says, the GPU water cooler has been completely redesigned. To optimize cooling performance, it redefined and tested the gaps between the cooler and the PCB components. The water flow was simulated using what Alphacool calls state-of-the-art software, and the results were verified in practical tests. Those extensive tests enabled improvements to the cooler base and nozzle. The aim was to ensure the best possible cooling performance for the new generation.

What the loop needs

The block has two G1/4 connections in a brass terminal at the rear. Both take the compression fittings for your tube size, which are not in the box. Thermal pads, thermal grease, a putty tool, the PCIe bracket and the screws are included.

Technical data cooler

Technical data backplate

In the box

• 1x Alphacool ES Geforce RTX 5090 Gaming 1-Slot Design cooler
• 1x Backplate
• 8x M2x8mm screws
• 2x 68x15x1mm Pad
• 1x 54x15x1mm Pad
• 2x 110x8x1mm Pad
• 2x 12x15x1mm Pad
• 8x 8x8x1mm Pad
• 1x Thermal Grease
• 1x Putty tool
• 1x PCIe Bracket
• 1x Nut
• 1x Washer
• 1x M2x5mm Screw

Alphacool's manual for this block is a PDF.
