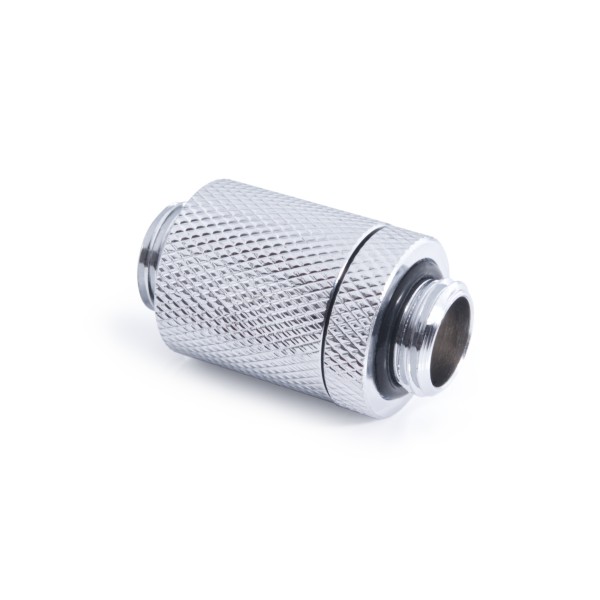

The D-Plug from Alphacool's ENTERPRISE SOLUTIONS series with 2 G1/4" male threads offers the possibility to connect components like GPU and CPU coolers or radiators within a water circuit.

What's New?
Compared to double nipples or similar adapters, the ES D-Plug is plugged and not screwed. The necessary stability is provided by two closely fitting O-rings on the Male component of the connector. Of course, the connector has been extensively tested in the Alphacool lab with the result that the D-Plug is stable up to 1.5 Bar.

Uses
Alphacool's ES D-Plug allows for easy connection of water cooling components such as graphics card and CPU coolers or radiators to each other. Since the connector is only plugged in and not screwed, easy installation or quick replacement are uncomplicated. The ES D-Plug has a variable length. By pulling the connector apart, an extension of up to 15 mm can be achieved. This flexibility allows compensation for inaccuracies in the system design and prevents hoses from twisting during assembly. With the use of the D-Plug, the connection of water cooling elements is possible even in the tightest spaces.

The right size for every application
The ES D-Plug is available in lengths of 20 mm, 25.5 mm and 31.5 mm. They come in multiple colors such as brilliant chrome or matte black. Replacement O-rings in three different colors are included.

Application notes
To ensure the required stability and tightness of the connection, both O-rings of the Male component must be fully recessed in the Female component.



Technical data
Material	Brass
Color	Chrome
Length	25.5 mm
Diameter	20 mm
Thread	G1/4“ OT
Thread length (incl. O-ring)	5 mm
Weight	44 g
Pressure tested	1,5 Bar
