Details

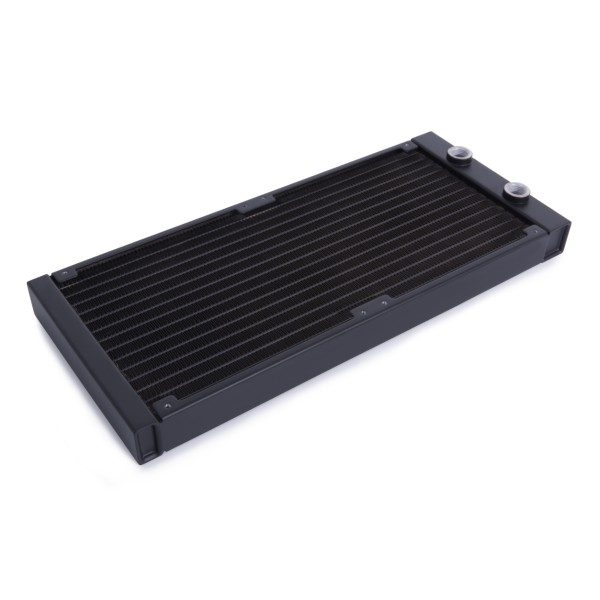

The Alphacool ES Aluminum 280mm T27 Radiator is a 280 mm radiator for two 140 mm fans, 27 mm thick and made of aluminum throughout. This is an Enterprise Solutions Aluminum product: the ES aluminum radiators must not be used together with copper water cooling products (radiators, fitting, etc.).
Properties
- Fans
- 2x 140 mm one-sided / 4 double-sided
- Size (L x W x H)
- 316 x 140 x 27 mm
- Thickness
- 27 mm
- Ports
- 2x G1/4 (IN/OUT)
- Material
- aluminum fins, channels, prechamber, outer housing and threads
Built for the industrial range
The all-aluminum ES T27 and T38 radiators of Alphacool's ENTERPRISE SOLUTIONS series were specially developed for use in the industrial range. Due to the low construction height of 27mm or 38mm, Alphacool says they find space in the smallest of spaces. They enable the water cooling of technical equipment in the automotive industry, in mechanical engineering or in the production of films and videos.
High Performance
Compared to Alphacool's full copper models, all ES T27 and T38 aluminum radiators have additional cooling channels, 14 on this one. Alphacool says this technical design allows a significant increase in cooling capacity without restricting the water flow within the radiator. The radiators have a high fin density (20 fins per inch here) and are particularly suitable for use with fans with high air pressure and air throughput. According to Alphacool this achieves a significant increase in the performance of the water-cooled components.
Fitting and mounting options
The radiator offers one inlet and one outlet (IN/OUT) with G1/4 thread, so it takes two fittings and has no spare port to plug. It holds two 140 mm fans on one side or four double-sided, on M3 threads. Screws for case mounting (M3x5) and for fan mounting (M3x30) are included with the radiator, 8x of each. Additional screws are not required for single-sided fan mounting.
Important note
Keep copper out of this loop. Alphacool warns that using aluminum & copper components together will cause severe damage to the liquid cooling loop.
Technical data
| L x W x H | 316 x 140 x 27 mm |
| Quantity of cooling channels | 14 |
| Material cooling fins, channels & prechamber | Aluminum |
| Material outer housing & threads | Aluminum |
| Fins per Inch | 20 |
| Threads | 2x G1/4 |
| Thread size fan mounting | M3 |
| Fan size | 140 mm |
| Fan slots | 2 one-sided / 4 double-sided |
| Max working temperature | 90 °C |
| Pressure tested | 0.8 bar |
| Weight | 405 g |
| Color | Black |
Notes
- Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses, which can result in voiding the manufacturer's warranty as well.
In the box
- 1x Alphacool ES Aluminum 280 mm T27, Black
- 8x M3x30 screw
- 8x M3x5 screw
Downloads: Alphacool's data sheet is a PDF. Its 3D model of the radiator is an STP file, and the 3D viewer shows it from every side.
