Details

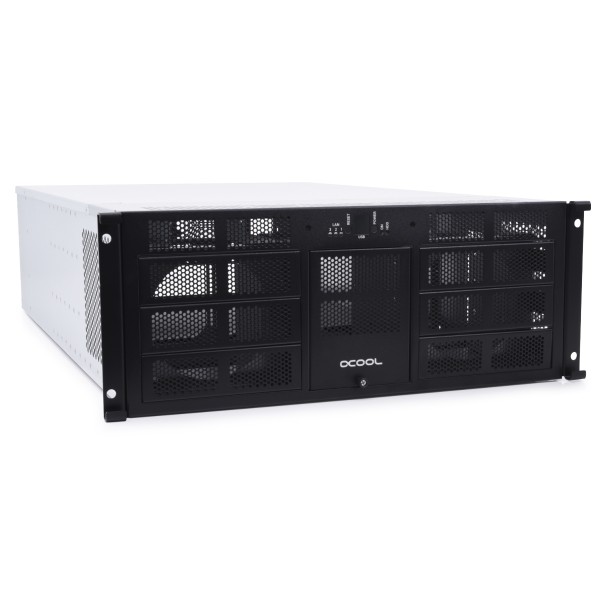

The Alphacool ES 4U ServerRack has been specifically optimised to accommodate water cooling sets that can dissipate up to 2400W of waste heat in this enclosure. For this purpose, the enclosure not only offers a mounting frame for a maximum of one 3x120mm full copper radiator of the Alphacool NexXxoS series. The optionally available Alphacool ES 120 mm fans with PWM control ensure optimum cooling performance.
Drives
The 4U server rack offers mounting options for six 5.25" drives on the left and right side of the front. Six mounting positions for 2.5" drives are located in the upper area in the front. In the middle, three 3.5" drives can be mounted or an expansion tank including pump.
Mainboard
For mounting an SSI-EBB mainboard, all the usual screw connection options in the classic ATX format are available. This includes all mounting holes for Mini-ITX to EE-ATX. The case offers space for up to eight PCIe cards.
Water cooling for 2400W waste heat
With an appropriate water cooling system, up to 2400W of waste heat can be dissipated in this case. Alphacool offers special water cooling sets for this purpose, which can be individually configured and are delivered to the customer pre-filled. The mounting frame for the radiator and fans can be moved within the enclosure to suit any set-up.
Please note: The case comes without I/O panel. Alphacool offers a separate set of I/O panel and cable harness under item number 25054.
Overview of all compatible sets for this enclosure can be found here!(Attention: This link redirects you to the manufacturer's website www.alphacool.com)
Alphacool recommends the following compatible products for this case.
Radiators
1011658 - NexXxoS ST30 Full Copper X-Flow 360mm Dual (3 x 120mm)
1011662 - NexXxoS XT45 Full Copper X-Flow 360mm Triple (3 x 120mm)
1011666 - NexXxoS UT60 Full Copper X-Flow 360mm Quad (3 x 120mm)
1015719 - NexXxoS ST30 V.2 Full Copper 360mm Penta (3 x 120mm)
1015507 - NexXxoS XT45 V.2 Full Copper 360mm Hexa (3 x 120mm)
Reservoir with integrated pump top
1016194 - Alphacool Eisstation 80 DC-LT (Recommended Pump: 13154)
1017716 - Alphacool ES Reservoir 2U – DDC (Recommended Pump: 13991)
CPU Cooler
1016218 - Alphacool XPX 1U (AMD AM4, Intel LGA 1150, 1151, 1200, 2033, 2033-1, 2066)
1015815 - Alphacool XPX Pro 1U (AMD TR4, sTRX4, SP3, sWRX8, Intel LGA 2011, 2011,3, 2066, 3647)
Fans
1020154 - Alphacool ES 120mm 1000-4.000rpm PWM (120x120x25mm)
1019158 - Alphacool ES 120mm 4.000 DC (120x120x25mm)
Techncal data:
| Form factor | 4HE (4U) |
| Length | 736,95 mm (29,01 Inch) |
| Width | 478,50 mm (18,84 Inch) |
| Height | 177,8 mm (7,00 Inch) |
| Weight | 17,22 kg (37,96 lbs) |
| Material | Galvanised sheet steel |
| Material thickness | 1,2 mm |
|
Colour Case |
Grey |
| Colour Front |
Black |
| Standard | Optional |
| 6 x 5,25“ Slots | |
| 6 x 2.5“ HDD/SSD | |
| 3 x 3.5“ HDD/SSD | Pump/Reservoir holder |
Download Manual PDF: Alphacool ES 4U - 19" Serverrack
Download Datasheet PDF: Alphacool ES 4U - 19" Serverrack
Additional Information
| Amazon ASIN | NA |
|---|---|
| NE CA Item # | No |
| NE US Item # | No |
| Manufacturer | Alphacool |
| Chassis Form Factor | No |
| Overall Dimensions | 177,8 mm (7,00 Inch)(H) x736.95 mm (29.01 Inch)(L) x 478.50 mm (18.84 Inch)(W) |
| Color | Black |
| Motherboard Compatibility | SSI-EBB, SSI-CEB, SSI-CEB, Mini ATX, Flex ATX, Mini DTX, Micro ATX, EATX |
| Graphics Card Compatability | N/A |
| Radiator Mounting Points | No |
| Hose / Fillport Openings | N/A |
| Number of Fans | No |
| Material | Steel |
| Drive Bays | 0 |
| Hard Drives | 6 |
| Side Window | No |
| Power Supply Mount | No |
| I / O Panel | No |
| Included | 1x Alphacool ES 4U - 19" - ServerRack - Watercooling Ready |
