Details

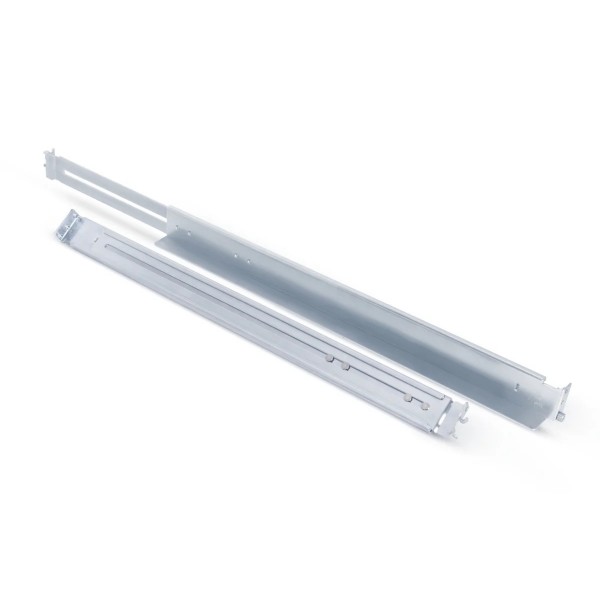

The Alphacool ES 19" Rackmount Rails with Rail Support are a set of steel slide rails for 19" server racks built to the EIA/ECA-310 standard. The rail depth adjusts from 55.4 to 87.9 cm and the load capacity is 70 kg. One set of slide rails with six mounting screws is in the pack.
Properties
- Fits
- Alphacool ES 19" Serverrack, 19" Serverrack with EIA/ECA-310 standard
- Rail depth
- 55.4 cm minimum, 87.9 cm maximum
- Load capacity
- 70 kg
- Material
- Steel
- Color
- Gray
- Pieces in the pack
- 1 set of slide rails, 6 mounting screws
What the rails are for
Alphacool says the rails offer optimal mounting for its ES 19" server racks as well as standardized 19" server cases. It calls them the ideal addition or extension for the ES 19" open frame server rack, which we stock with 15U, 18U and 25U, or for standardized 19" open frame server racks. Developed for professional use, they are meant to give the installed server hardware maximum stability and precise guidance. Alphacool adds that the slide rails are specially developed for industrial requirements and that their robust construction ensures high load capacity and durability.
Fastening and maintainability
These slide rails enable smooth installation and maintenance of server hardware in a 19" open frame server rack. They ensure secure fastening, and during maintenance work they facilitate access to the server components. The integrated rail support provides additional stability, even when the rails are fully loaded. Their load capacity is 70 kg, which Alphacool says makes them suitable for universal use. The data sheet adds that they are compatible with most network rack devices.
What the rack needs
The rails with support are designed for server racks with the EIA/ECA-310 standard and are compatible with all server racks that comply with this standard. Check the depth of your rack first: the rails reach from 55.4 cm at the shortest to 87.9 cm at the longest. A case to slide in on them is in our server racks and cases section.
Technical data
| Dimensions (L x W x H) | 55.4/87.9 x 4.5 x 4.2 cm |
| Maximum Rail Depth | 87.9 cm |
| Minimum Rail Depth | 55.4 cm |
| Load capacity | 70 kg |
| Material | Steel |
| Weight | 1798 g |
| Serverrack standard | EIA/ECA-310 |
| Color | Gray |
| Compatibility | Alphacool ES 19" Serverrack, 19" Serverrack with EIA/ECA-310 standard |
In the box
- 1x 19" set of slide rails for rack mounting
- 6x Mounting screws
Alphacool's Manual for this article is its ES ServerRack case manual, which shows how the slide rail is screwed into the rack, and the data sheet is a PDF too. Alphacool's 3D model of the rails is an STP file, and the 3D viewer shows them from every side.
