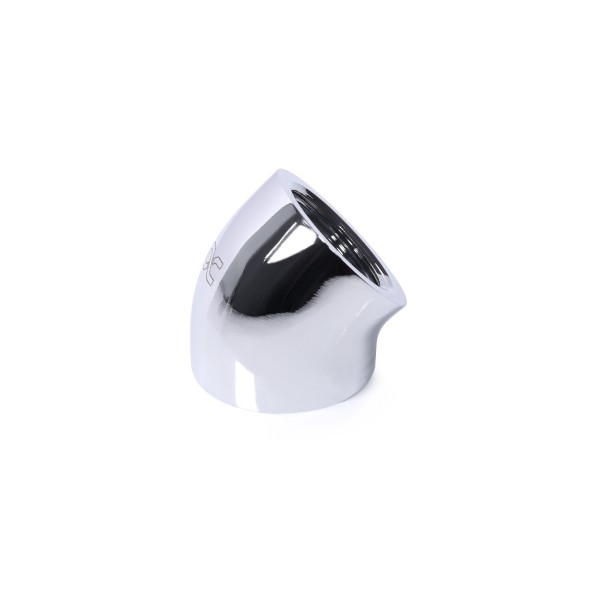

Alphacool Eiszpafen L-Connector 45° G1/4 IT to G1/4 IT - Chrome (17593)

The Alphacool Eiszapfen L-Connector 45° G1/4 IT to G1/4 IT - Chrome is a 45° angled adapter for water cooling with a G1/4 female thread (IT, inner thread) on both sides. It is made of brass in chrome, and there is one connector per pack.

Properties

Thread

2x G1/4 inner thread (female)

Angle

45°

Size (L x W x H)

21 x 20 x 21 mm

Material

Brass

Color

Chrome

Pieces in the pack

1

Version

Alphacool describes this version as an angled connection that is used in water circuits where there is limited space for tubing and a special solution is needed.

The Eiszapfen series

Alphacool calls its Eiszapfen Connector Series the high-end execution of these tried-and-true connectors. It says every requirement you could have of a connector is met with this series: highflow, form, processing and color. In Alphacool's telling, a refusal to compromise in development and production has made the series into what it is. The components are available in brilliant chrome or a deep, matte black, which Alphacool says will fit excellently into any system.

The outer coating is bound firmly to the surface by a special procedure. Alphacool says this binds it well enough to keep improving the longevity of the intense color while preventing any chipping or peeling of the coating. Every connector now has the Alphacool logo, and Alphacool says that, along with their distinctive shape, it makes them unmistakable.

What a run needs

Both ends are inner threads, each 5 mm deep. Each one takes a part with a G1/4 outer thread, such as a fitting for your tube size from our fittings. Those are not in the pack.

Technical data

Alphacool's data sheet is a PDF. Alphacool's 3D model of this connector is an STP file, and the 3D viewer shows it from every side.
