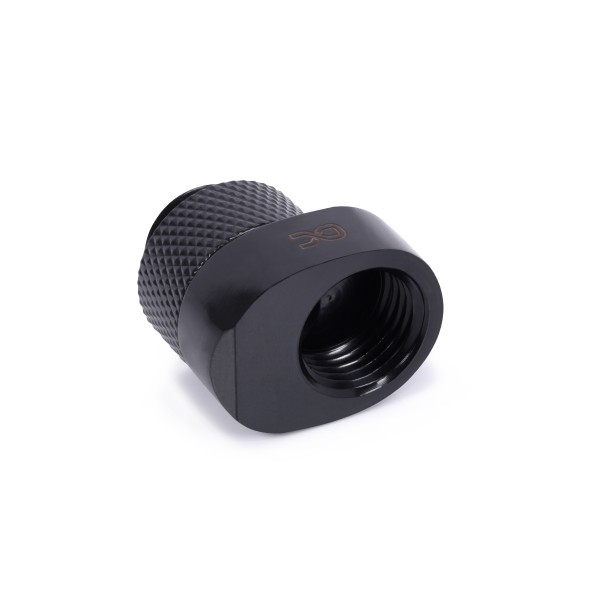

Alphacool Eiszapfen 8mm Offset Fitting Rotatable G1/4 OT to G1/4 IT - Black (17604)

The Alphacool Eiszapfen 8mm Offset Fitting Rotatable G1/4 OT to G1/4 IT - Black is a rotatable 8 mm offset fitting in black brass, one fitting per pack. It comes with one external G1/4 thread (OT) and one internal G1/4 thread (IT). It screws between two G1/4 connections and has no tube connection of its own.

Properties

Thread

G1/4 external (OT) and G1/4 internal (IT), each 5 mm

Offset

8 mm, rotates 360°

Size (L x W x H)

24 x 22.5 x 18.5 mm

Material

Brass

Color

Black

Pieces in the pack

1

Integration made easy

Alphacool says the Eiszapfen offset piece can be easily tied into any water circuit. It is very compact, and thanks to its internal and external G1/4 threads it can be integrated into any water cooling system. The piece is simply screwed onto the corresponding G1/4 connections at the desired position in the circuit.

Design

The threads are short: the internal one is 5 mm deep and the external one 5 mm high, respectively, thus enabling the very compact design. The offset piece can also be rotated 360°. That provides additional flexibility for integration, which Alphacool says holds even in the tightest cases.

Colored O-rings

The standard O-ring is black. In addition to it, 3 more O-rings in red, yellow and blue are included.

What a run needs

Alphacool gives the compatibility as G1/4 OT/IT threads. The external thread goes into a G1/4 port, and the internal thread takes any G1/4 male thread, for example one of our fittings.

Technical data

In the box

• 1x Alphacool Eiszapfen 8mm off set fitting rotatable G1/4 OT to G1/4 IT, black
• 3x O-ring (yellow, blue & red)

Alphacool's data sheet for this fitting is a PDF. Its 3D model is an STP file, and the 3D viewer shows it from every side.
