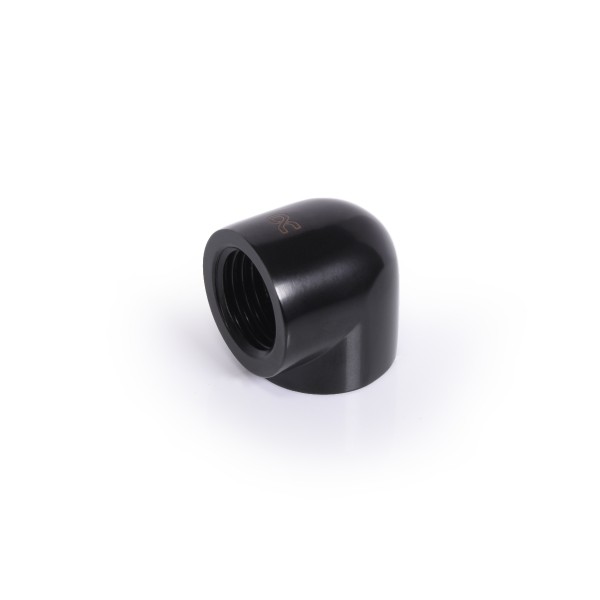

Alphacool Eiszapfen 20mm L-Connector Fitting G1/4 IT To G1/4 IT - Black (17588)

The Alphacool Eiszapfen 20mm L-Connector Fitting G1/4 IT To G1/4 IT - Black is a 90° elbow with 2 female G1/4 threads (IT), in black brass, one fitting per pack. It joins two parts with G1/4 male threads at a right angle and has no tube connection of its own.

Properties

Thread

2 x G1/4 female (IT), 5 mm deep

Angle

90°

Size (L x W x H)

19.7 mm x 19.7 mm x 18 mm

Material

Brass

Color

Black

Pieces in the pack

1

Integration made easy

The L-connector is very compact, and its 2 threads are the reason it can be easily integrated into any water loop or water circuit. It is simply screwed to the corresponding G1/4 connections, at any position in the loop.

Design

The threads are only 5 mm deep, allowing for the very compact design. This allows the elbow to be installed in the system in a very space-saving manner, Alphacool says. Its data sheet also lists a durable coating.

What a run needs

Alphacool gives the compatibility as G1/4 OT connectors: each side takes a part with a G1/4 male thread, thanks to the standard size. Two of our fittings with that thread complete the corner.

Technical data

In the box

• 1x Alphacool 20mm L-Connector G1/4 IT to G1/4 IT - Black

Alphacool's data sheet for this fitting is a PDF. Its 3D model is an STP file, and the 3D viewer shows it from every side.
