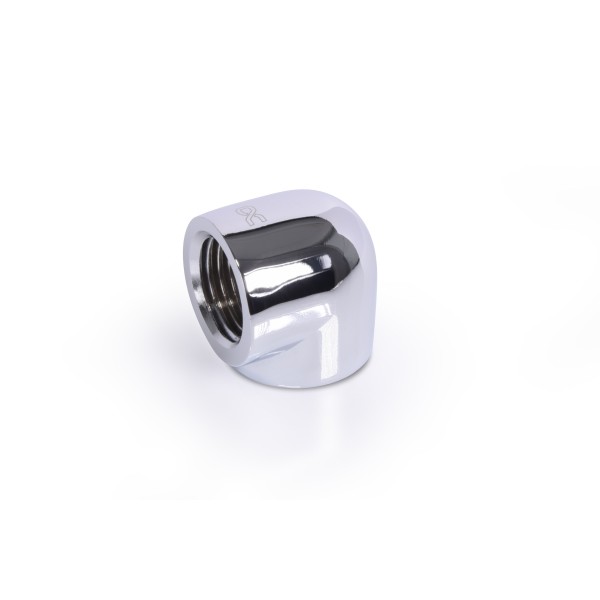

Alphacool Eiszapfen 20mm L-Connector Fitting G1/4 IT To G1/4 IT - Chrome (17589)

The Alphacool Eiszapfen 20mm L-Connector Fitting G1/4 IT To G1/4 IT - Chrome is a 90° elbow with 2 female G1/4 threads (IT), in chrome-coated brass, one fitting per pack. It has no tube connection of its own: each side takes a part with a G1/4 male thread.

Properties

Thread

2 x G1/4 female (IT), 5 mm deep

Angle

90°

Size (L x W x H)

19.7 mm x 19.7 mm x 18 mm

Material

Brass

Color

Chrome

Pieces in the pack

1

Integration made easy

Alphacool describes the L-connector as very compact, a part that can be easily integrated into any water loop or water circuit thanks to its 2 threads. It is simply screwed to the corresponding G1/4 connections, at any position in the loop.

Design

The threads are 5 mm deep, allowing for the very compact design. Alphacool says this allows the elbow to be installed in the system in a very space-saving manner. The data sheet adds a durable coating.

What a run needs

Under Compatibility, Alphacool lists G1/4 OT connectors, meaning parts with a G1/4 male thread. Two of our fittings with that thread, one in each side, complete the corner.

Technical data

In the box

• 1x Alphacool 20mm L-Connector G1/4 IT to G1/4 IT - Chrome

Alphacool's data sheet for this fitting is a PDF. Its 3D model is an STP file, and the 3D viewer shows it from every side.
