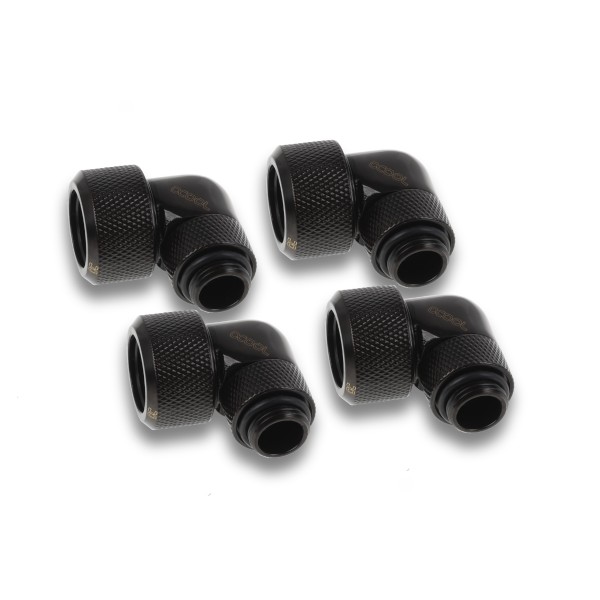

Alphacool Eiszapfen 16mm HardTube Compression Fitting 90° Rotary G1/4 for Acryl/Brass Tubes - Black - Four Pack (17609)

The Alphacool Eiszapfen 16mm HardTube Compression Fitting 90° Rotary G1/4 for Acryl/Brass Tubes - Black - Four Pack (17609) is a set of four 90° angled compression fittings with a G1/4 thread. They take hard tube with a 16 mm outer diameter. The threaded side is rotatable, and the other side fits a 16 mm acrylic or brass tube.

Properties

Thread

G1/4, 5 mm long, rotatable 360°

Tube size

16 mm outer diameter (5/8"), acrylic or brass

Angle

90°

Color

Deep black, matte

Pieces in the pack

4

The Eiszapfen series

Alphacool calls its Eiszapfen connector series the high-end execution of these tried-and-true fittings. It says everything you want in a compression fitting is here: highflow, form, processing and color. In its words, a refusal to compromise in development and production has made the series into what it is. The fittings are available in brilliant chrome or a deep, matte black, which Alphacool says will fit excellently into any system.

Coating and seal

A special procedure binds the outer coating firmly to the surface. According to Alphacool this helps the intense color last, improving its longevity and preventing any chipping or peeling of the coating. Every connector now has the Alphacool logo, and along with their distinctive shape that makes them unmistakable. The union nut's slanted corners allow the O-ring to be pressed firmly against the HardTube, ensuring it sits even more securely than before. Alphacool says this allows for greater safety in transport.

What a run needs

This model has a G1/4 thread on one side, and Alphacool says it is thereby compatible with 95% of components. Each fitting is bent in the middle to avoid complicated hose connections, and the threaded side turns for maximum flexibility. A tube run takes two fittings, one at each end, so the pack covers two runs. Tube to match is in our 16mm hard tubing section.

Technical data

Notes

• Alphacool's note on application: use the fittings only with clear, transparent water cooling fluids.
• It says the particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses.

In the box

• 1x Alphacool Eiszapfen 16mm HardTube compression fitting 90° rotatable G1/4 for Acryl/Brass tubes, (4pcs) Set Deep Black

Alphacool's Datasheet (EN) has the technical data. Its 3D model of the fitting is an STP file, and the 3D viewer shows it from every side.
