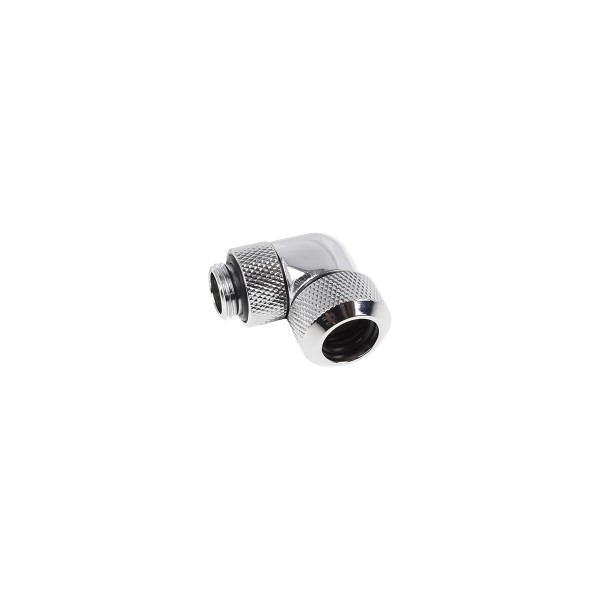

Alphacool Eiszapfen 13mm HardTube Compression Fitting 90° Rotatable G1/4 - Knurled - Chrome (17392)

This Alphacool Eiszapfen fitting is a 90° angled, knurled HardTube compression fitting in chrome with a rotatable G1/4 thread for 13 mm hard tubes. There is one fitting per pack. Alphacool lists the model as the 90° compression fitting 13mm.

Properties

Thread

G1/4, rotatable

Tube size

13 mm outer diameter

Angle

90°

Color

Chrome, knurled

Material

Brass

Dimensions

Length: 42.5 mm, Width: 21 mm

The Eiszapfen series

Alphacool calls its Eiszapfen connector series the high-end execution of these tried-and-true fittings. In its words, everything you want in a compression fitting is here: highflow, form, processing and color. It credits a refusal to compromise in development and production for what has made the series into what it is. Fittings are available in brilliant chrome or a deep, matte black, and Alphacool says either will fit excellently into any system. This one is the chrome version. The Technical Specifications name brass as the material.

Coating and logo

The outer coating is bound firmly to the surface: a special procedure binds the two. Alphacool says this is improving the longevity of the intense color and preventing any chipping or peeling of the coating. Every connector now has the Alphacool logo, which along with their distinctive shape makes them unmistakable.

How it holds the tube

The union nut's corners are slanted. They allow the O-ring to be pressed firmly against the HardTube, ensuring it sits even more securely than before. Alphacool says this allows for greater safety in transport.

What a run needs

A G1/4 thread sits on one side, and Alphacool says the fitting is thereby compatible with 95% of components. The other side fits a 13 mm acrylic or brass tube. The fitting is bent 90° in the middle to avoid complicated hose connections, and the threaded side is rotatable for maximum flexibility. A tube run takes two fittings, one at each end. Tubes to match are in our 13mm hard tubing section.

Notes

• Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.

In the box

• 1x Alphacool Eiszapfen 13mm HardTube Compression Fitting 90° rotatable G1/4 - Knurled - Chrome

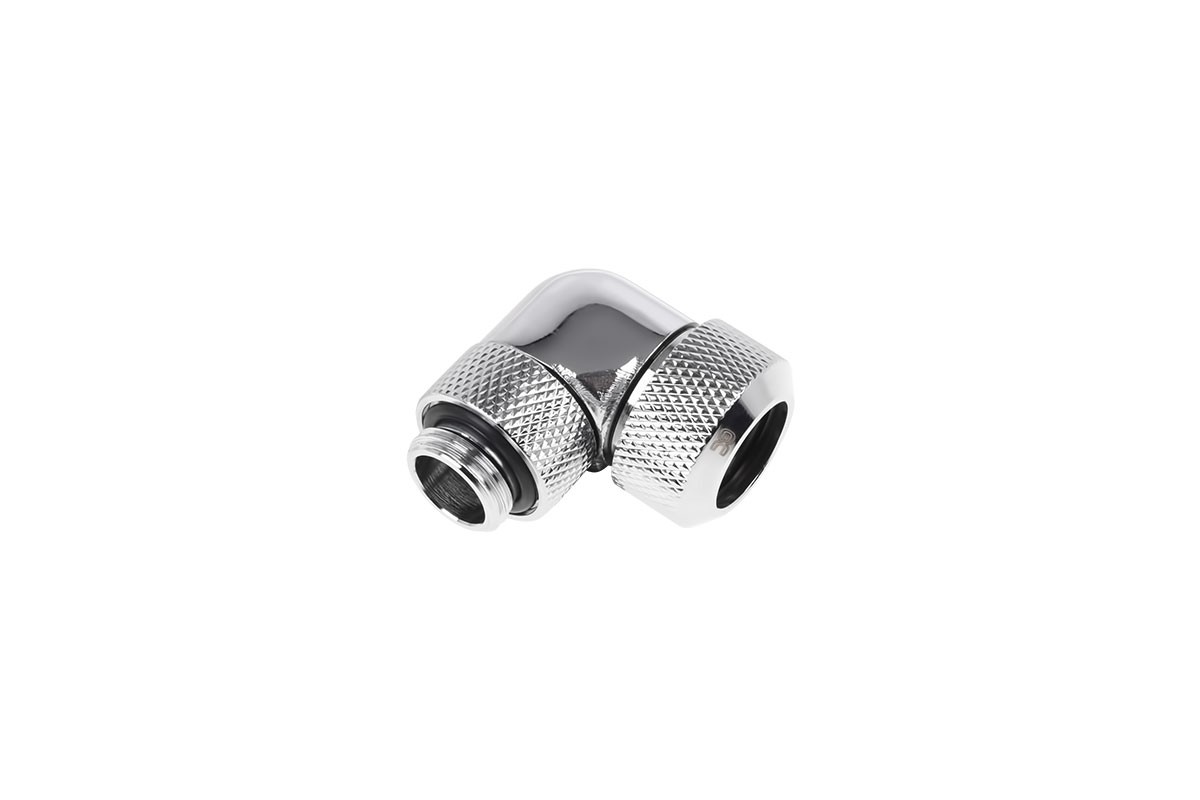

Alphacool's 3D viewer shows this fitting from every side.
