Details
The Alphacool Eisstation DC80 - AIO Power Unit is a pre-filled reservoir with integrated pump top and a DC-LT 2 pump, 50.62 x 50.62 x 77 mm in size, on TPV hoses with quick-release connectors. It fulfills two important functions for Alphacool AIO systems. It can be used as a filling aid for all of them, or as a booster for more pump power when a loop is to be expanded with several components.
Properties
- Pump
- DC-LT 2, 2600 RPM, included
- Ports
- 3x G1/4
- Size (L x W x H)
- 50.62 x 50.62 x 77 mm
- Maximum flow rate
- 72 L/h
- Tube size
- 12.7 / 7.6 mm
- Power connection
- 3-pin fan connector
Structure

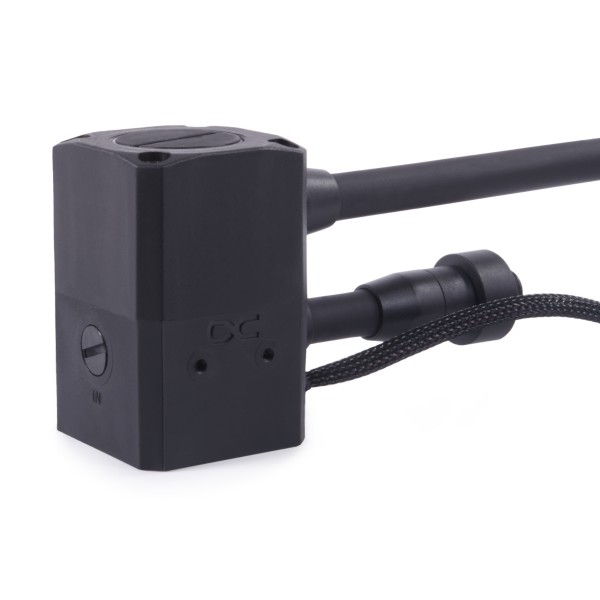

The unit consists of the Eisstation DC80, which is the reservoir and pump top in one black part, and a DC-LT 2 pump. Connected to this are two TPV hoses, each with a male and female quick-release connector at the end. Alphacool states that these quick connectors are compatible with all its AIO systems for graphics cards and processors, CPU and GPU alike.
Filling aid
If you want to refill your AIO system, connect it directly to the power unit via the existing quick-release fasteners, which Alphacool calls a simple and uncomplicated way. All that is needed to fill it is to open the large G1 screw plug. The integrated pump ensures sufficient pressure to pump the coolant into the AIO. Ideally, the AIO's own pump should only be run when there is already enough coolant in the system, which prevents it from running dry during the filling process.
Power Unit?
Adding several components to an Alphacool AIO can quickly lead to its existing DC-LT 2 pump reaching its performance limit. If the Power Unit is additionally integrated into the circuit, the additional pump provides more power to operate a larger loop.
Mounting
The scope of delivery includes a Velcro fastener that Alphacool describes as extremely adhesive, which allows positioning anywhere in the case. Alphacool's optionally available mounting accessories allow even more mounting options.
What the loop needs
Pump, coolant and hoses come with the unit, so it needs an Alphacool AIO with quick-release fasteners to connect to and a 3-pin fan connector for the pump. The coolant inside is clear.
Pump Top/Reservoir Details
| L x W x H | 50.62 x 50.62 x 77 mm |
| Maximum working temperature | 60 °C |
| Connections | 3 x G1/4 |
| Pressure tested | 1.5 Bar |
Pump Details
| Speed | 2600 RPM |
| Voltage | 6-13.5V DC |
| Power consumption | 3.2 W |
| Maximum flow rate | 72 L/h |
| Maximum head | 1 m |
| Power connection | 3-pin fan connector |
Quick Release Coupling Details
| Material | Nylon |
| Tube size | 12.7 / 7.6 mm |
Tube Details
| Material | TPV (EPDM/PP) |
| Tube size | 12.7 / 7.6 mm |
| Length | 43 cm / 9 cm |
| Working temperature | 50 to +155 °C |
Technical data liquid
| Ingredients | Distilled water (CAS number 7732-18-5), glysantine (CAS number 1017-21-1) |
| Temperature range | -15 °C / +90 °C |
| Color | clear |
Notes
- Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.
In the box
- 1 x Alphacool Eisstation DC80 pump top & reservoir, black
- 1 x Alphacool DC-LT 2 pump with 30cm cable
- 1 x TPV tubes with quick coupling
- 1 x Velcro mounting
Alphacool's datasheet is a PDF download. Its 3D model of the unit is an STP file, and the 3D viewer shows it from every side.
