Details

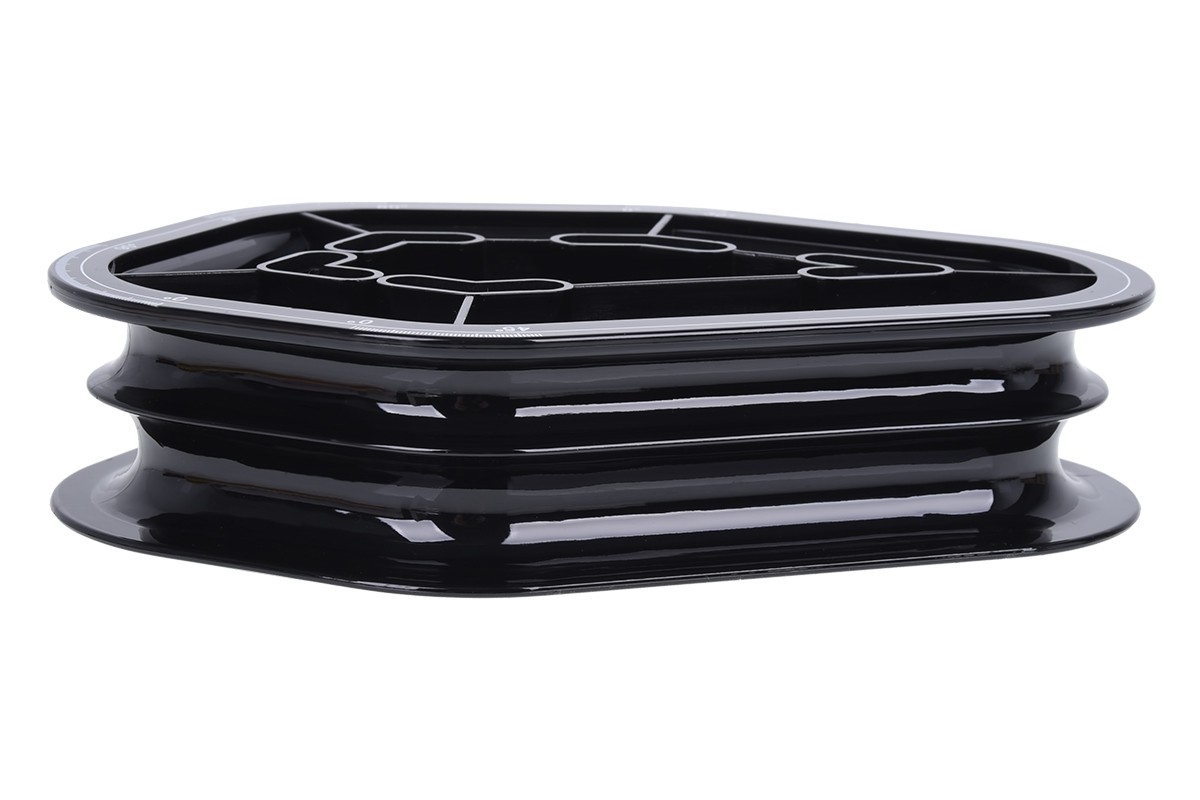

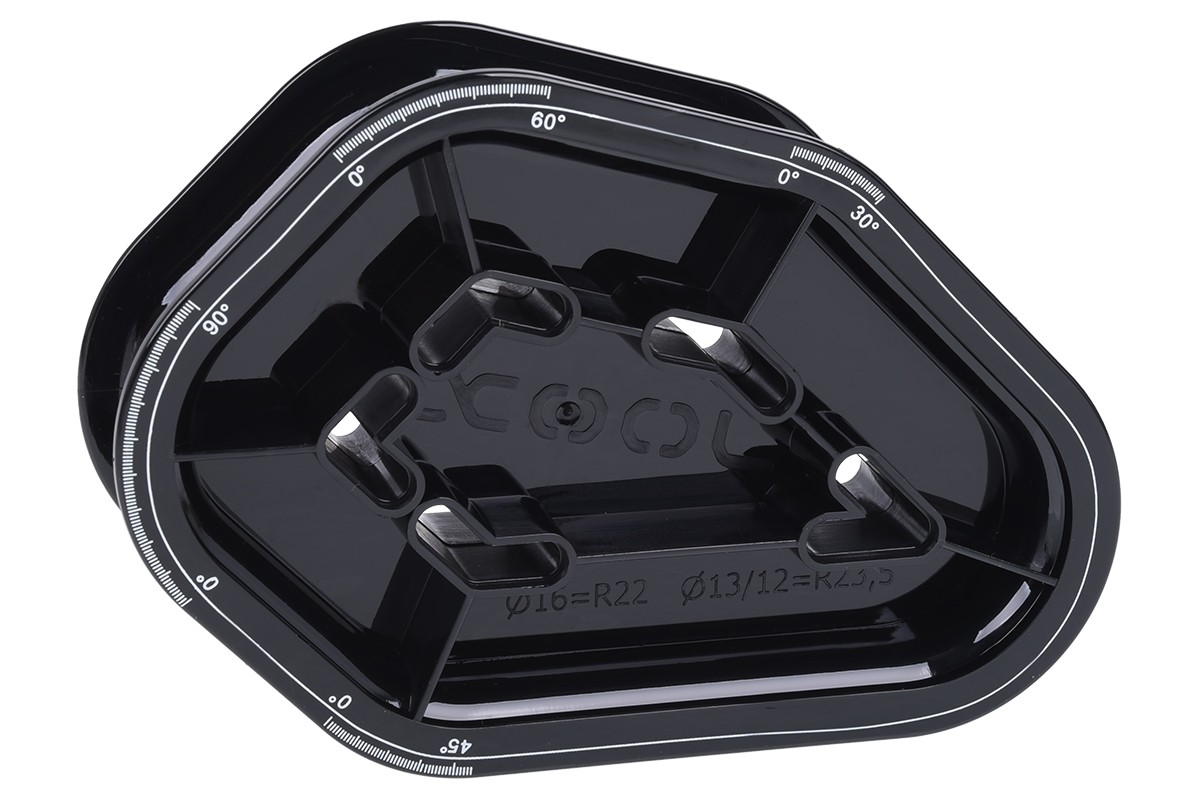

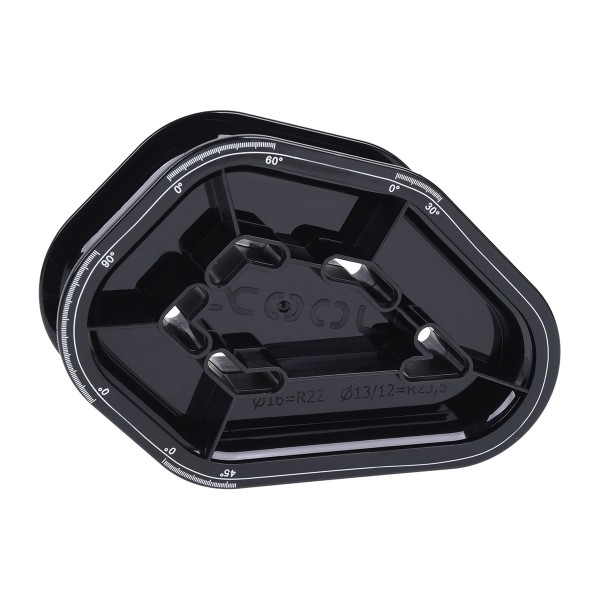

The Alphacool Eiskoffer - Multi-Mandrel - Small is a tube bending mandrel for tube diameters of 12 or 13 mm and 16 mm, with possible angles of 30°, 45°, 60° and 90°. This is the small version, one multi mandrel per pack.
Properties
- Tube size
- 12 or 13 mm and 16 mm Ø
- Possible angles
- 30°, 45°, 60°, 90°
- Bend radius
- 23.5 mm (12 or 13 mm tube), 22 mm (16 mm tube)
Bend radius
On the Small Version, tubes with 13 or 12 mm Ø are bent around a radius of 23.5 mm. A tube with 16 mm Ø gets a 22 mm radius. The big version bends the same tube sizes around a larger radius.
Using it
All of its bending mandrels and stoppers are designed for both tube sizes. The required guide is always aligned downwards. Do not bend more than an added angle of 180°, so that the tube can be removed again once it has cooled down.
What a bend needs
The mandrel only shapes the tube. Tube to bend is in our 12mm, 13mm and 16mm hard tubing sections.
