Details

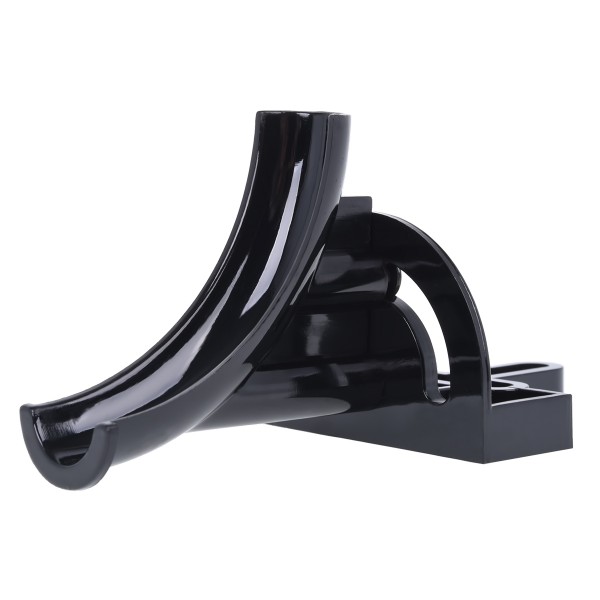

The Alphacool Eiskoffer - Mandrel 13mm 90° is a 90° bending mandrel for tubes with 13 or 12 mm Ø, one mandrel per pack. It belongs to Alphacool's Eiskoffer tube bending tools, and Alphacool lists 2 versions for 3-dimensional bending. A 45° mandrel for the same tubes and a 90° mandrel for 16 mm tube are separate parts. Alphacool calls this part the Angle feeder 13mm in 90°.
Properties
- Bend
- 90°
- Tube diameter
- 13 or 12 mm
- Horizontal angle
- Adjustable over 180°, 1° scale
- Screws
- M4
- Pieces in the pack
- 1
Setting the angle
The horizontal angle of the mandrel is freely adjustable over a range of 180°. To adjust it, loosen the M4 screws on the back using the included hexagon socket. Then set the desired angle with the 1° scale. Finally, tighten the screws again.
What a bend needs
Select the correct version, so that it will correspond with the diameter of your selected tube. Tube to match is in our 13mm hard tubing and 12mm hard tubing sections.
In the box
- 1x Mandrel 13mm 90°
