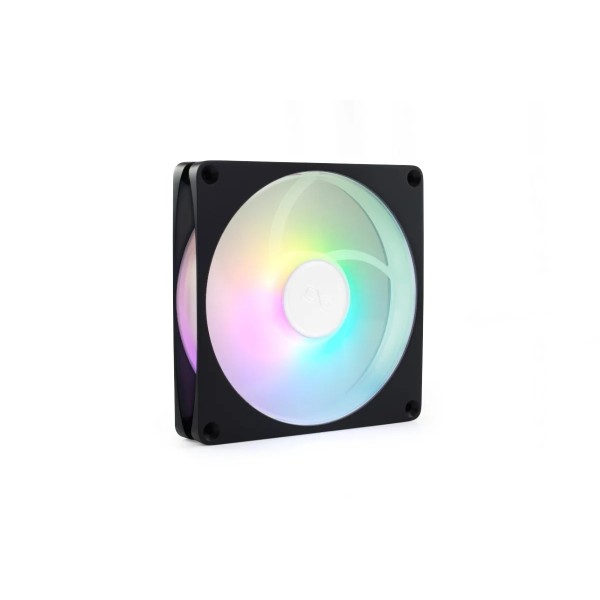

Alphacool Apex Stealth Metal Aurora Fan 2000rpm Matte Black - 140x140x25mm (13786)

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Alphacool Apex Stealth Metal Aurora Fan 2000rpm Matte Black - 140x140x25mm (13786)

Availability: In stock - Ships in 7-14 Business Days

Sku: 1024308

$43.99

Quick Overview

140 mm PWM aRGB metal fan with decoupled vibration design, 300–2000 RPM range, 75.12 CFM airflow, and zero-RPM support for quiet, high-performance cooling.
OR

Details

High-quality, elegant, and timeless design combined with technical innovation – these are the hallmarks of the Alphacool Apex Stealth metal fan. With its patent-pending decoupling technology, robust metal frame, and special rotor, this fan is sure to impress. The Apex Stealth is not only one of the most powerful fans available, but it also remains exceptionally quiet at any speed.

Whisper-quiet:
The fan blades, motor, and its mounting are completely decoupled from the metal frame. A special damping system is integrated between the metal frame and the fan, absorbing all vibrations. This type of decoupling is a completely new system, introduced by Alphacool for the first time with the Apex fan. Furthermore, the impeller features a closed frame that prevents impeller tip flutter at high speeds, further enhancing the fan's performance.

Powerful all-rounder:
The Alphacool Apex Stealth metal fan is a true all-rounder. It sets new standards in airflow and static pressure. Therefore, this fan is not only perfect for mounting on radiators, but also ensures excellent airflow as a case fan. The Apex Stealth Power can be controlled via the 4-pin PWM connector between 300 and 2000 RPM. The starting speed is approximately 300 RPM. The Stealth also features a zero-RPM control, allowing the fan to be brought to a complete standstill.

Apex Design:
The Apex product line from Alphacool represents the pinnacle of perfection. First-class materials and innovative technologies guarantee a unique premium product. The combination of a curved frame and brilliant aRGB lighting creates impressive lighting effects and a distinctive design that integrates perfectly into any PC build.

Additional Features
: As is typical for Alphacool, multiple fans can be easily daisy-chained. The cables can be hidden in the corners of the fan, making them invisible. A 50 cm PWM extension cable is also included. The 6-pole motor, in combination with the sleeve bearing, ensures extremely smooth running and high durability.



Technical data
Dimensions (L x W x H) 140 x 140 x 25mm
Material (frame) Zinc die-casting
Material (impeller) plastic
Weight 350g
speed 300~2000±10% RPM
fan bearing Plain bearings
Connection 4-Pin PWM
Cable length PWM / aRGB 40±8 mm (+ 50cm extension cable)
Cable length (daisy chain) 110±10 mm
Starting voltage 6 V DC
Nominal voltage 12 V DC
power consumption 0.40 A (0.44 Max)
Power consumption 5.28 watts
airflow 75.12 CFM
Static pressure 2.36 mmH2O
Maximum volume 32.8 dBA
MTBF 100,000 hours
PWM control Yes
Zero-RPM control Yes
Speedometer signal Yes
Auto-restart Yes
aRGB Yes
Color Black

MANUAL

Additional Information

Manufacturer Alphacool
Overall Dimensions 140 x 140 x 25 (L x W x H)
RPM 300~2000±10% rpm
Air flow 75.12 CFM
Noise (dB) 32.8 dBA
Air pressure 2.36 mmH2O
Power Connector 4-Pin PWM
Start voltage 6V
Voltage 12V
Material No
Max Current Draw 5.28 W
Color Black
LED ARGB
Fan Compatibility 140mm
Included 1x Stealth Fan 1x PWM Extension cable 50cm 4x M3 Screw 4x 6-32 UNC Screw 4x M4 Screw 4x Stealth Mounting Nut 1x cleaning cloth 1x aRGB Extension cable 50cm
