Details

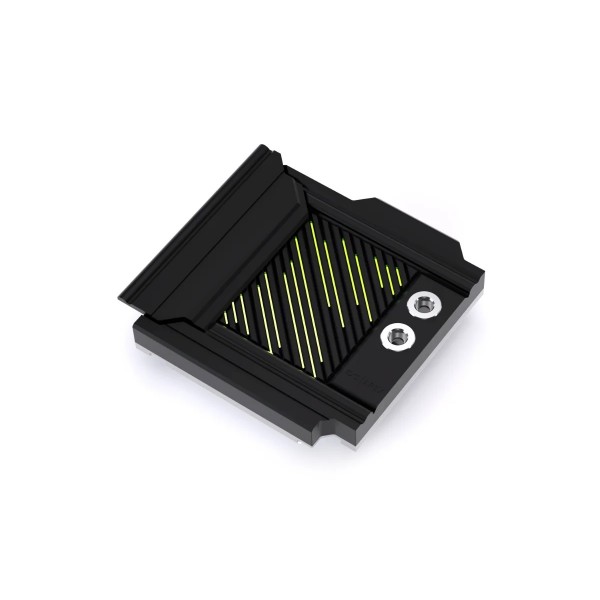

The Alphacool Apex Monoblock for MAG X870 TOMAHAWK WIFI is a full-cover CPU water block for one motherboard, the MSI MAG X870 Tomahawk WiFi (AM5). As a monoblock it actively cools the CPU, the VRMs, and the primary M.2 NVMe SSD beneath the CPU socket with a single, integrated cooling solution. It is designed specifically and exclusively for that board and mounts on no other.
Properties
- Motherboard
- MSI MAG X870 Tomahawk WiFi
- Socket
- AM5
- Cold plate
- Chrome-plated copper
- Ports
- G1/4, brass terminal
- Lighting
- ARGB, adapter in the box
Fit
Compatibility is one entry: MSI MAG X870 Tomahawk WiFi (AM5). Fitting the block means taking the board's own coolers off first. The manual removes the M.2 SSD cooler by its latch, then the components it labels M2, M3 and M4, each held by 2 screws on the back of the board. For M3 the screws on the I/O shield are loosened first. The two-piece AMD retention frame comes off as well.
The M.2 SSD is installed next, and the thermal pads go on the cooling block. Depending on the size of the M.2 SSD, the manual uses either the 70x22x2mm or the 101x22x2mm pad. After the CPU is cleaned and the thermal grease applied, the monoblock is secured with 6 screws, and the I/O shield screws go back in. Use the original screws for those.
Built on the Apex 1
The monoblock is built upon the design of the Alphacool Apex 1 CPU cooler, described as proven. It features an offset cooling base, optimized for AMD AM5 processors, that directs coolant precisely toward the processor's thermal hotspot. That base is combined with Alphacool's Cross-Slot fin structure and the advanced 3D Jetplate 2.0. The cooling engine generates high coolant velocity and pressure, for heat transfer Alphacool rates as exceptional and for maximum cooling efficiency. Alphacool calls it an excellent choice for overclocking, gaming, high-performance computing and demanding workstation applications.
Copper and brass
The cold plate is precision-machined from a solid piece of chrome-plated copper, while the G1/4 connection terminal is manufactured from brass. The brass is called durable, chosen to ensure long-term reliability and excellent thermal conductivity. Every detail is said to be engineered to provide efficient cooling while maintaining structural integrity under continuous operation. The construction and the materials are both billed as premium.
Design and I/O cover
The motherboard-specific design features a built-in I/O cover that creates a clean, factory-style appearance. The block is described as one that integrates seamlessly with the board and was engineered to maximize cooling performance while complementing the motherboard's aesthetics. That engineering enhances both the cooling and the overall system aesthetics, according to Alphacool, making the block a natural centerpiece for any custom liquid-cooled build. Alphacool names it the ideal cooling solution for enthusiasts building a high-end custom water-cooled AM5 system, combining thermal performance with its materials.
What the loop needs
The block connects through the G1/4 threads of its terminal and takes two compression fittings for your tube size, which are not in the box. The manual has a step for connecting the ARGB lighting, and an ARGB adapter is among its accessories. To run, the block also needs a pump and a radiator in the loop.
Features
- Cools the CPU, the VRMs and the primary M.2 NVMe SSD
- Made for one board, the MSI MAG X870 Tomahawk WiFi (AM5)
- Integrated motherboard-specific I/O cover
In the box
- 1x Alphacool Apex Monoblock MAG X870 TOMAHAWK WIFI
- 6x M3x8mm Screw
- 6x Washer
- 2x 78x8x2mm thermal pad
- 2x 67x8x2mm thermal pad
- 1x 12x12x2mm thermal pad
- 1x 70x22x2mm thermal pad
- 1x 101x22x2mm thermal pad
- 1x Thermal grease (1g thermal paste)
- 1x Putty tool
- 4x AM5 Mounting Nuts
- 1x ARGB Adapter
The package includes this mounting hardware and the pads, and the installation instructions are the manual linked below.
Alphacool's manual and data sheet are both PDFs. Its 3D model of the block is an STP file, and the 3D viewer shows it from every side.
