Details

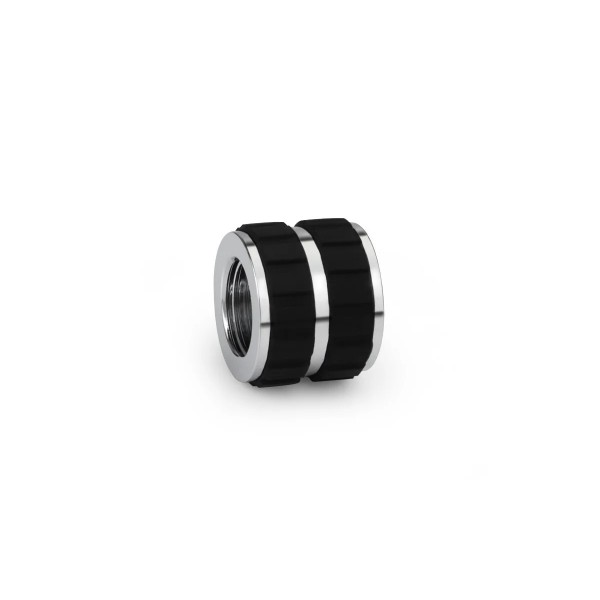

The Alphacool Apex Grip G1/4 Female to Female Rotary Fitting - Chrome is a rotary fitting with a female G1/4 thread on both sides, so it joins two male G1/4 threads. There is one fitting per pack. It is made of brass with a chrome coating and a silicone grip surface.
Properties
- Thread
- G1/4 female to female (2x G1/4)
- Height
- 16.80 mm
- Diameter
- 19.40 mm
- Color
- Chrome
- Pieces in the pack
- 1
The grip
The outer grip area of the fitting has an integrated silicone surface, which Alphacool names as a key feature of the series. It provides a better hold when tightening by hand. That noticeably facilitates installation, especially in confined spaces. Alphacool says this not only makes the work more convenient but also offers greater control.
Material and coating
Brass is what the fittings are made of, and it gives them high stability and durability. The brass is complemented by a coating that protects against chipping. Alphacool calls both the coating and the workmanship high-quality, and says the finish further emphasizes the series' sophisticated character. According to Alphacool, the precise manufacturing ensures a reliable seal within the cooling loop, and the part is designed for high-flow performance within the system.
The modular system
Apex Grip fittings utilize a modular system. It enables flexible and customized connection solutions for modern custom water cooling systems. At the same time it allows for versatile applications and for adaptation to individual setups. Alphacool calls the series the ideal choice for demanding systems, combined with the elegant design in the distinctive Apex style and the comfortable handling. It also calls these fittings the perfect choice for anyone who places particular emphasis on handling and an elegant appearance in their loop.
What a run needs
Each side takes one male G1/4 thread. More couplers of this kind are in our female to female extension fittings section.
Technical data
| Height | 16.80 mm |
| Diameter | 19.40 mm |
| Material Fitting | Brass |
| Handle surface | Silicone |
| Connections | 2x G1/4 |
| Color | Chrome |
In the box
- 1x Apex Grip G1/4 female to female rotary fitting, chrome
Alphacool's 3D model of this fitting is an STP file, and the 3D viewer shows it from every side.
