Details

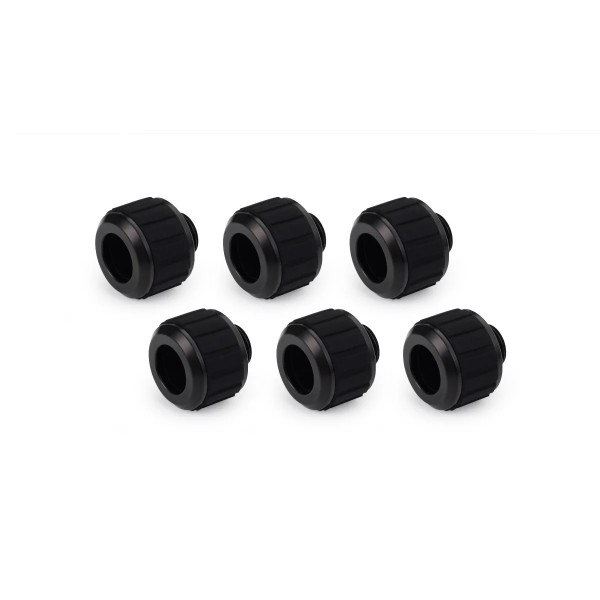

The Alphacool Apex Grip 13mm G1/4 HardTube Fitting - Black - 6 Pack is a pack of six fittings with a G1/4 thread for hard tube with a 13 mm outer diameter (OD). Each one is made of brass with a black coating and a silicone grip surface.
Properties
- Thread
- G1/4, 5 mm thread length
- Tube size
- 13 mm outer diameter (OD) hard tube
- Material
- Brass, silicone handle surface
- Color
- Black
- Pieces in the pack
- 6
The grip
The outer grip area of the fitting has an integrated silicone surface, which Alphacool names as a key feature of the series. It provides a better hold when tightening by hand, and that noticeably facilitates installation, especially in confined spaces. Alphacool says this makes the job not only more convenient but also offers greater control.
Brass and coating
The body is made of brass, which gives the fittings high stability and durability. This is complemented by a coating that protects against chipping. Alphacool calls the coating and the workmanship high-quality, and says the finish further emphasizes the series' sophisticated character. According to Alphacool, the precise manufacturing ensures a reliable seal within the cooling loop, and the fitting is designed for high-flow performance within the system.
The modular system
Apex Grip fittings utilize a modular system that enables flexible and customized connection solutions for modern custom water cooling systems. At the same time, Alphacool says, it allows for versatile applications and adaptation to individual setups. Combined with the elegant design in the distinctive Apex style and the comfortable handling, Alphacool calls the series the ideal choice for demanding systems. It also calls these fittings the perfect choice for anyone who places particular emphasis on handling and an elegant appearance in their custom loop.
What a run needs
The G1/4 thread screws into any G1/4 port, and the other side takes hard tube with a 13 mm outer diameter. A tube run takes two fittings, one at each end, so the six in this pack cover three runs. Tube to match is in our 13mm OD hard tubing section, and other fittings for this tube size are with the 13mm OD hard tube fittings.
Technical data
| Height | 22.20 mm |
| Diameter | 23.50 mm |
| Material Fitting | Brass |
| Handle surface | Silicone |
| Connections | G1/4 |
| Thread length | 5 mm |
| Hard tube compatibility | 13 mm outer diameter (OD) |
| Color | Black |
In the box
- 6x Apex Grip 13mm G1/4 HardTube fitting, black
