Details

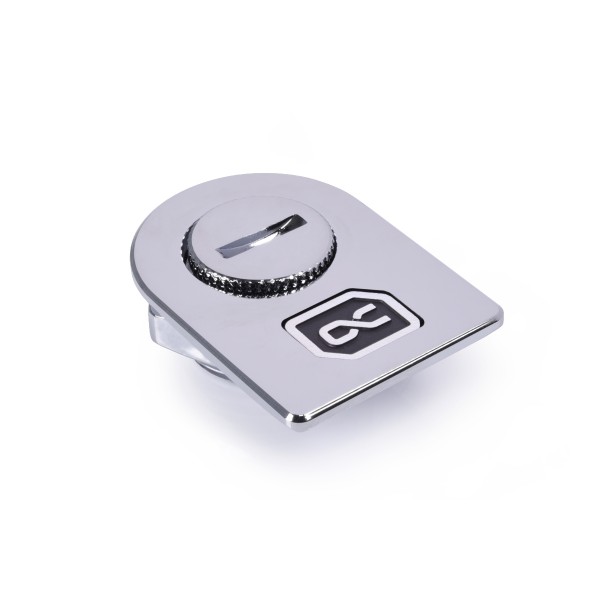

The Alphacool Apex Fillport - Chrome is a fill port for the case of a water cooled PC, with a G1/4 IT connection and an M20 thread for case mounting. One fillport per pack, with its stop plug and nut. It is a simple but effective port for easy filling of a water loop.
Properties
- Thread
- G1/4 IT
- Case mounting
- M20 thread, 20 mm hole
- Size (L x W x H)
- 42 x 30 x 15 mm
- Material
- Chrome-plated brass
- Color
- Chrome
- Pieces in the pack
- 1
Flat design
The flat design makes the port unobtrusive, so it fits in with most cases and blends into the overall look without being disruptive. The included stop plug screws in almost all the way and closes almost flush. Therefore you get a port that doesn't protrude and looks like it belongs to the case instead of being retrofitted.
Material
The body and the included nut are made of solid chrome-plated brass, making them very sturdy. Alphacool describes the chrome coating as durable and firmly bonded to the surface, preventing scratches or chipping.
Mounting
To mount it, drill a hole with a diameter of 20 mm anywhere in the case. The port is inserted, then screwed tightly and securely from the other side with the enclosed nut. Please note that it should be the highest point in the water cooling system.
What the loop needs
Compatibility: G1/4 connections. The port takes G1/4 fittings, and those for the run to the reservoir are in our reservoir fittings section.
Technical data
| L x W x H | 42 x 30 x 15 mm |
| Material | brass |
| Color | chrome |
| Connection | G1/4 IT |
| Thread for case mounting | M20 |
| Weight | 51 g |
In the box
- 1x Apex Fillport Chrome
- 1x stop plug
- 1x M20 nut
Alphacool's data sheet is a PDF. Its 3D model of the fillport is an STP file, and the 3D viewer shows it from every side.
